Removing Floor Front Section

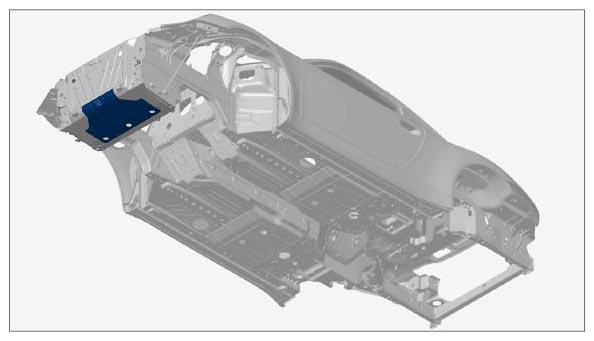

Fig 1: Identifying Floor Front Section
G10023971Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Drill through clinch points using a → Diameter: 6.5 mm  .
  2. Drill through punch rivets using a twist drill Nr.201  .

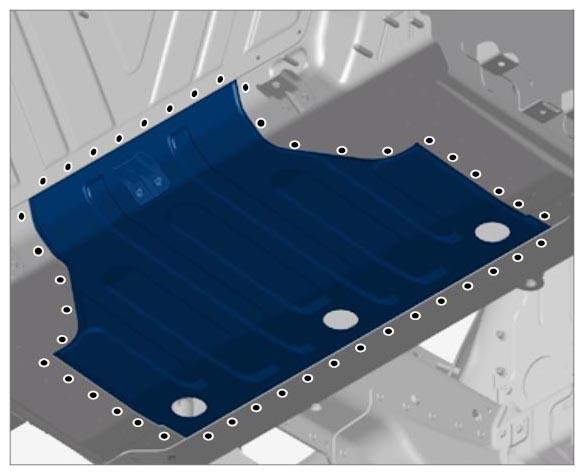

    Fig 2: Identifying Floor Front Section
    G10023972Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove floor front section.
