Installing Floor Front Section

  1. Apply adhesive. → Application depth: 5 mm

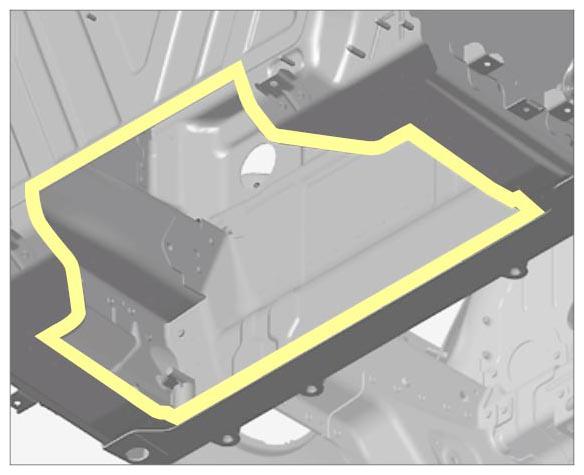

    Fig 1: Identifying Bonding Areas
    G10023975Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit floor front section.
  3. Rivet in floor front section.
    1. 3.1. Rivet in areas shown using → BLIND RIVET 999.190.229.01.

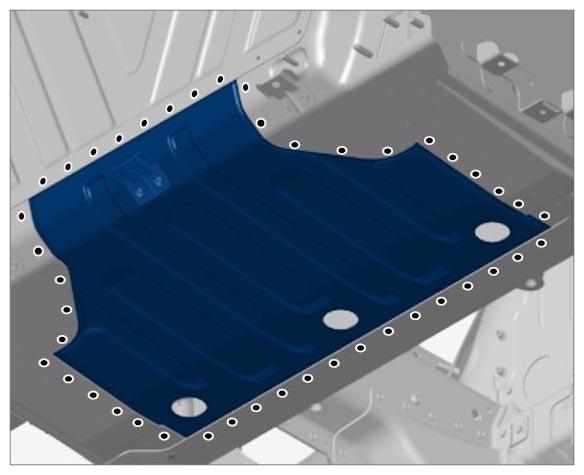

      Fig 2: Identifying Floor Front Section
      G10023976Courtesy of PORSCHE CARS NORTH AMERICA, INC.
