Preparing Front Panel For Installation

Information

• Some of the repair illustrations show only one side of the vehicle  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

Information

Remove component carefully.

The removed part must be re-used during installation.

Information

The rivet positions -1-  will also be used for the wing joining plate during installation.

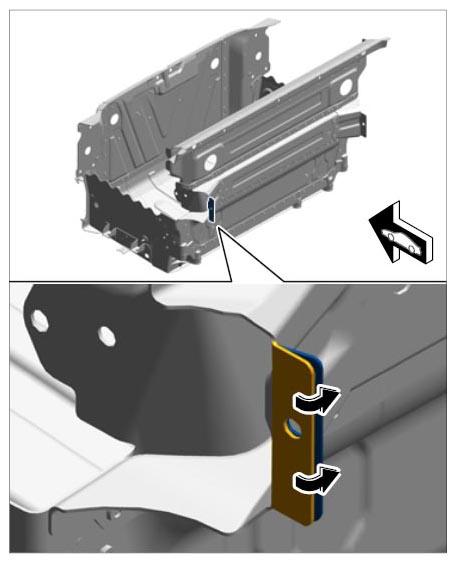

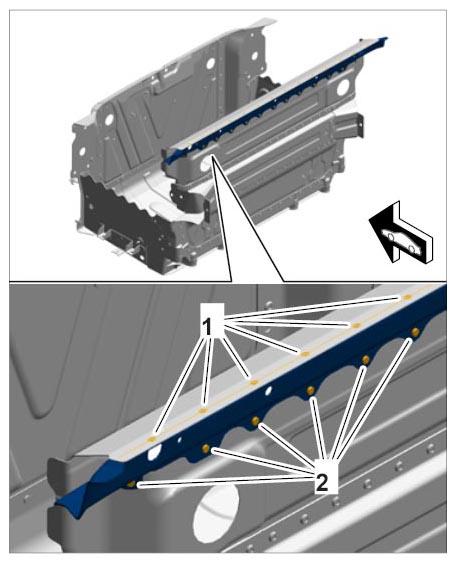

Fig 1: Identifying Cross Member Rivet

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Loosen upper cross member.
   1. 1.1. Drill through punch rivets -1 and 2-  .

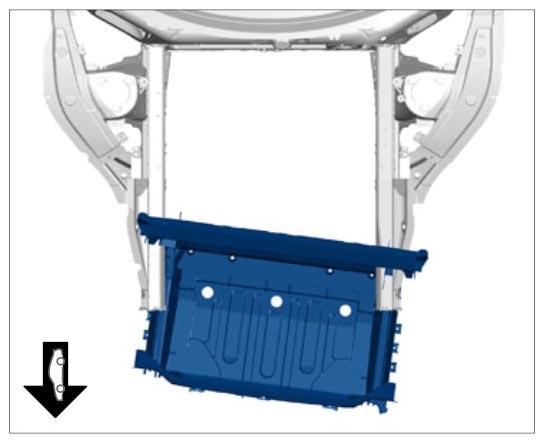

      Fig 2: Identifying Cross Member Rivet

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 1.2. Heat bonding areas.

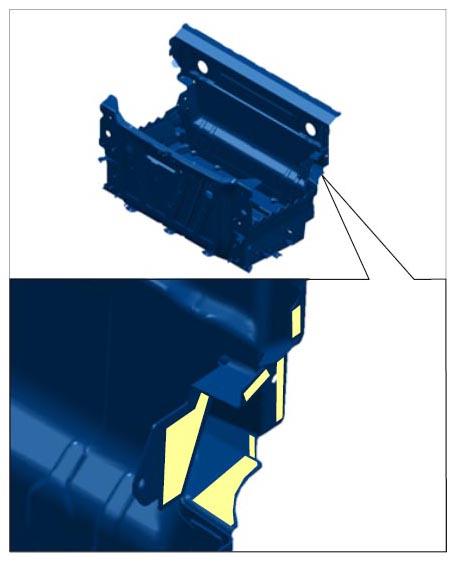

      Fig 3: Identifying Cross Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 1.3. Remove cross member.
2. Fit front panel and secure it to the body.
   1. 2.1. Position front panel.
      1. 2.1.1. Bend sheetmetal flange in slightly on one side.

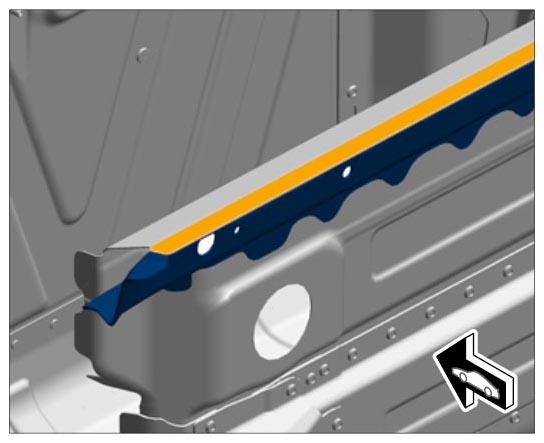

         Fig 4: Installing Sheetmetal Flange

         Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      2. 2.1.2. Insert front panel.

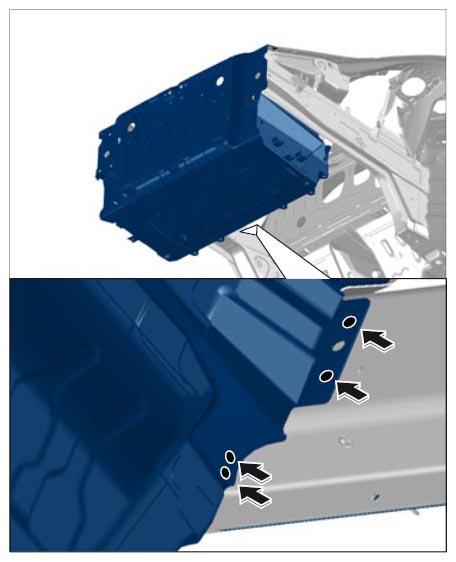

         Fig 5: Inserting Front Panel

         Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 2.2. Drill bores for the rivets through the existing holes. → Diameter: 6.5 mm
3. Drill new holes in the areas shown. → Diameter: 6.5 mm

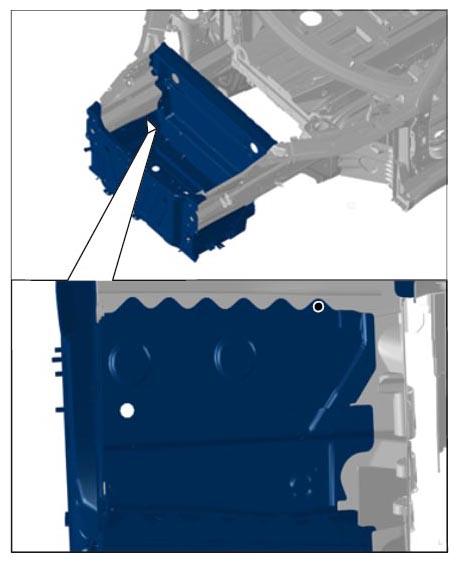

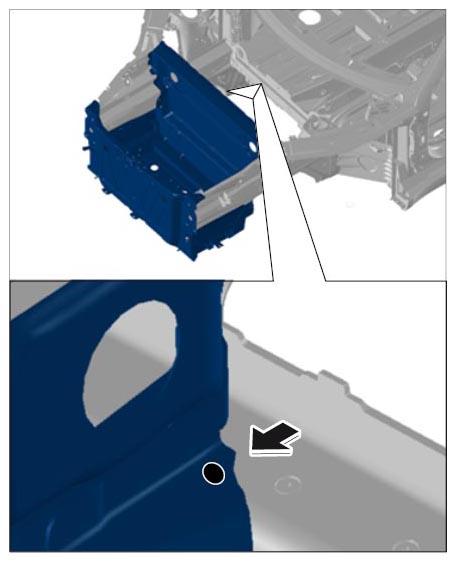

   Fig 6: Identifying Front Panel Holes

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

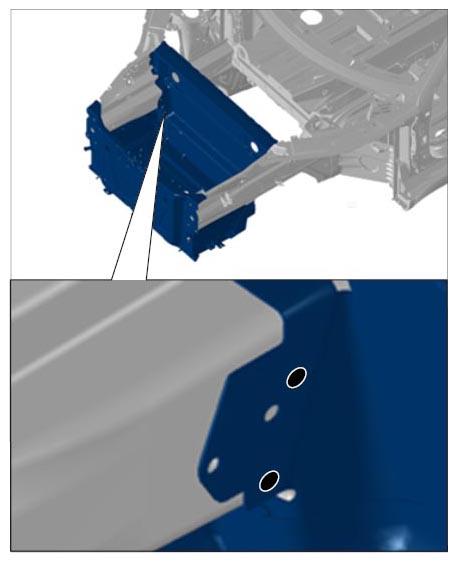

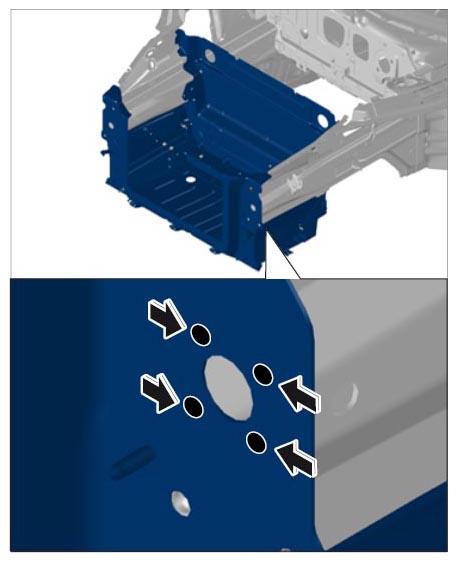

   Fig 7: Locating Front Panel Holes

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

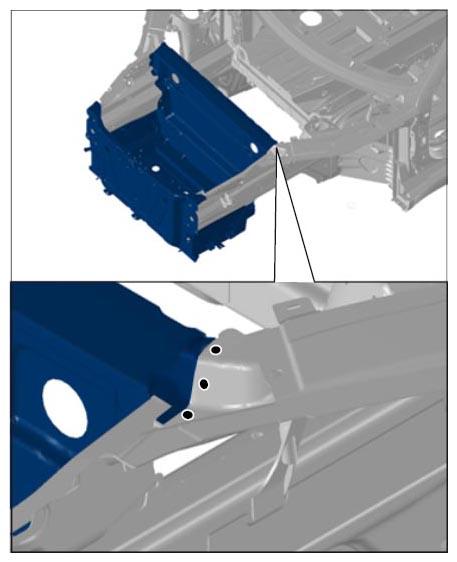

   Fig 8: Locating Front Panel Holes

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 9: Locating Front Panel Holes

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 10: Locating Front Panel Holes

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit upper cross member.
   1. 4.1. On the cross member, drill new holes through the existing holes on the body.
      Fig 11: Identifying Front Panel

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Countersink the bores shown for installing countersunk rivets. Countersink Nr.202

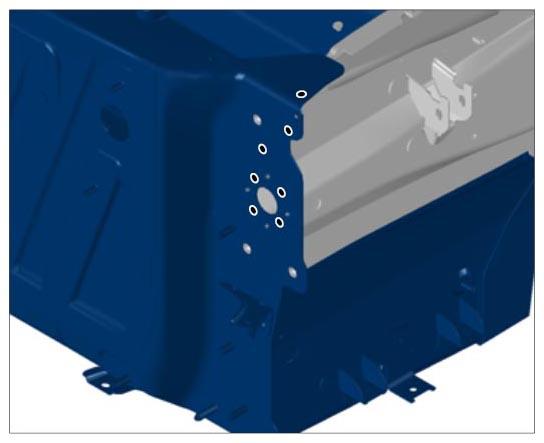

   Fig 12: Identifying Counterbores

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove cross member and front panel.
7. De-burr the bores.
8. Prepare connection areas for bonding. →  5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

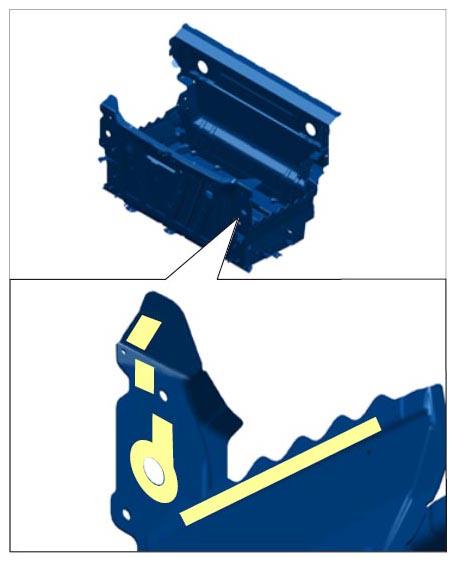

   Fig 13: Identifying Bonding Connection Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

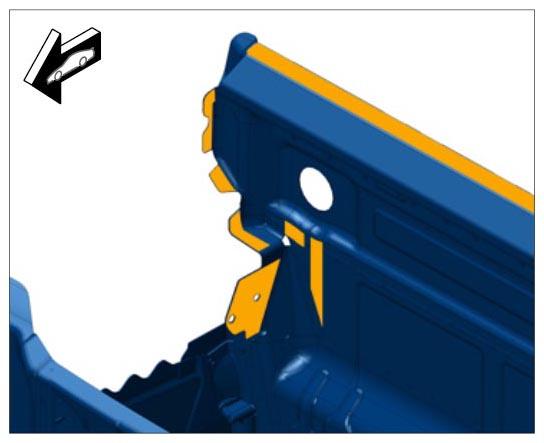

   Fig 14: Identifying Bonding Connection Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 15: Identifying Bonding Connection Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

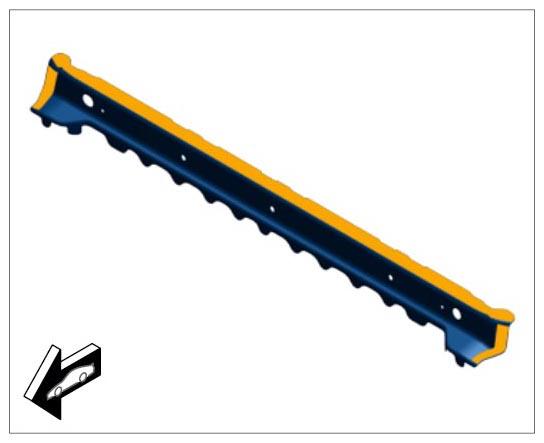

   Fig 16: Identifying Cross Member For Bonding Connection Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
