Preparing Connection Areas Of Body For Installing Front Panel

Information

• Some of the repair illustrations show only one side of the vehicle  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

1. De-burr the bores.
2. Prepare connection areas for bonding. →  5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

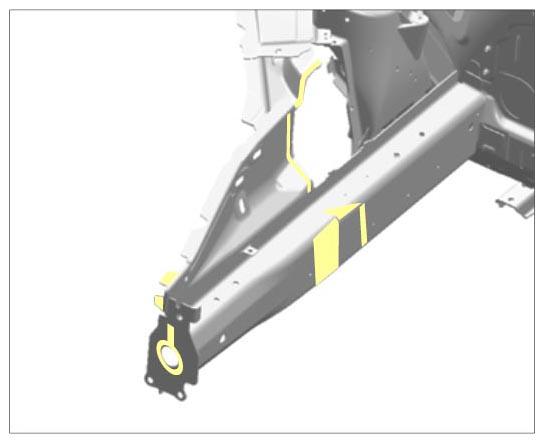

   Fig 1: Identifying Bonding Connection Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

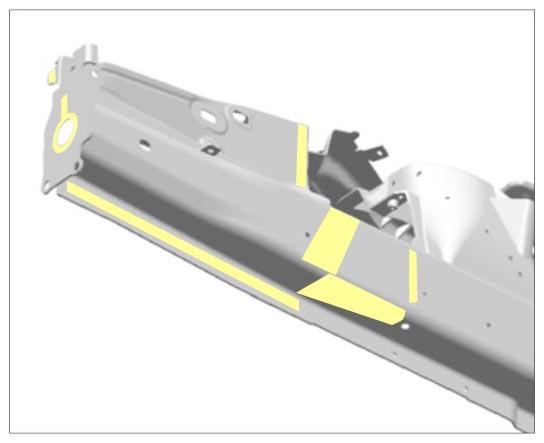

   Fig 2: Identifying Bonding Connection Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
