Removing Front Closing Panel

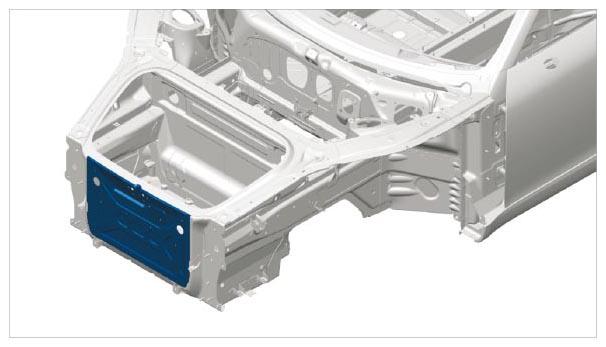

Fig 1: Identifying Front Closing Panel
G10023916Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Drill through clinch points using a → diameter: 6.5 mm  .

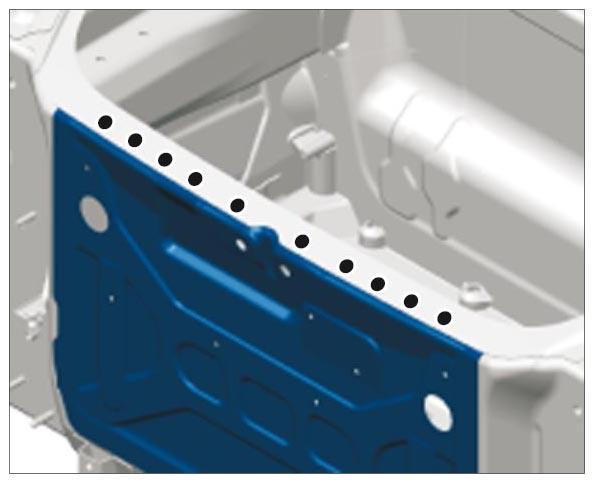

    Fig 2: Identifying Closing Panel
    G10023917Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Drill through punch rivets using a twist drill Nr.201  .

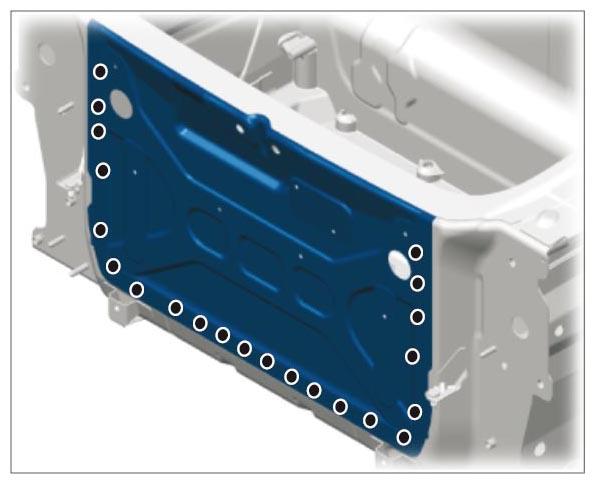

    Fig 3: Identifying Closing Panel
    G10023918Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove closing panel.
