Preparing Front Closing Panel For Installation

  1. Fit closing panel and secure it to the body.
    1. 1.1. Drill bores for the rivets through the existing holes. → diameter: 6.6 mm
  2. Remove closing panel.
  3. Countersink bores for installing countersunk rivets. Countersink Nr.202
  4. Prepare connection areas for bonding.

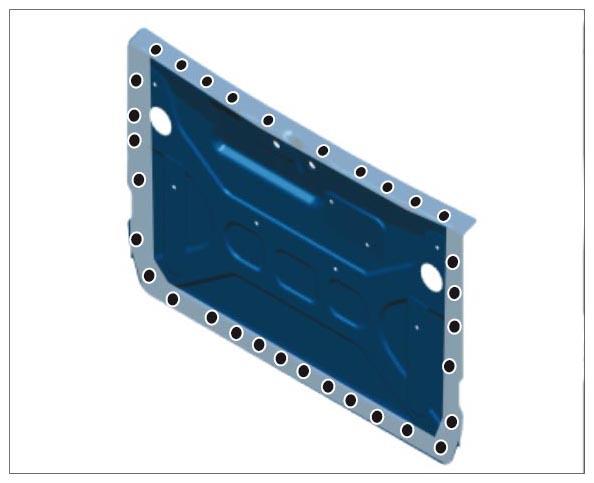

    Fig 1: Identifying Closing Panel Position
    G10023919Courtesy of PORSCHE CARS NORTH AMERICA, INC.
