Removing B-Pillar Seal

Fig 1: Identifying B-Pillar Seal Position
G10026931Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  .
  2. Lift the B-pillar seal up and off -arrow-  .

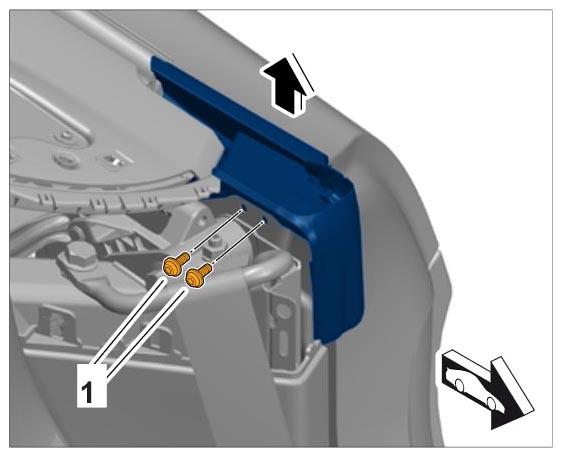

    3. Fig 2: Removing Seal
    G10026932Courtesy of PORSCHE CARS NORTH AMERICA, INC.
