Removing Wiper Arm For Rear Window Washer

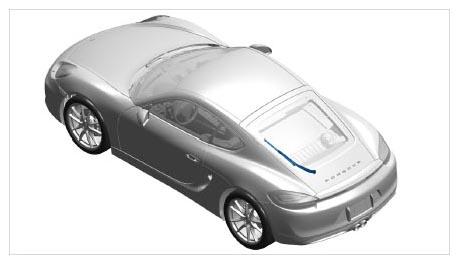

Fig 1: Identifying Wiper Arm For Rear Window Washer Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Pull cap -1-  up and off.
2. Unscrew the fastening nut -2-  .
3. Press wiper arm -3-  down at the joint and pull it down off the wiper motor drive mechanism.

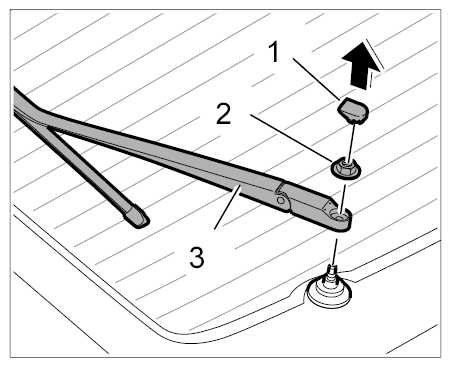

Fig 2: Removing Wiper Arm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
