Installing Wiper Arm For Rear Window Washer

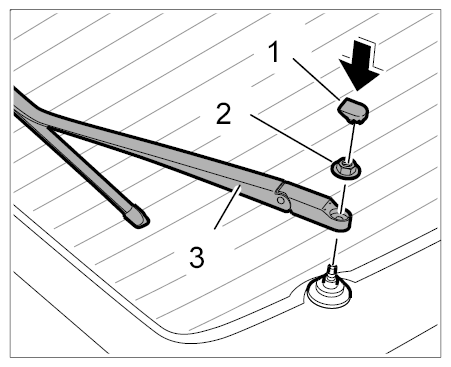

- Position wiper arm -3-
on the wiper motor drive and tighten the fastening nut -2-
by hand.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

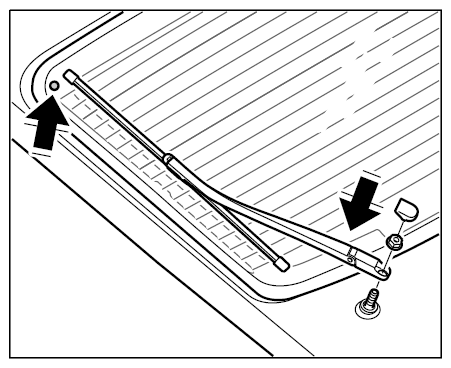

- Align wiper arm with the mark on the windscreen.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Screw on fastening nut -2-
and push on the cover -1-
. The cap must engage audibly. → Tightening Torque: 19 Nm (14 ft. lbs.)
- Actuate wiper motor of the rear window washer system, allow it to come to rest and check the position of the wiper arm once more.
