Removing Side Window

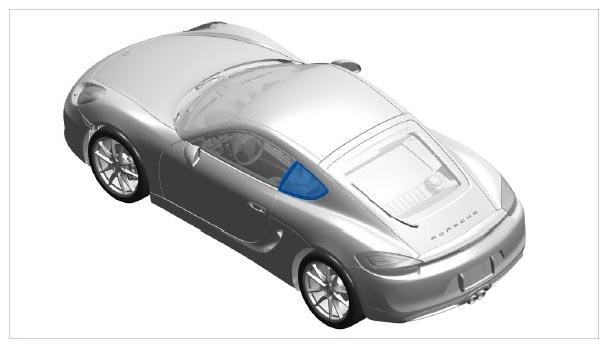

Fig 1: Identifying Side Window Position
G10027144Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew and remove fastening nuts -1+2-  .
    1. 1.1. Actuate fastening clamps using a suitable tool -arrows-  .

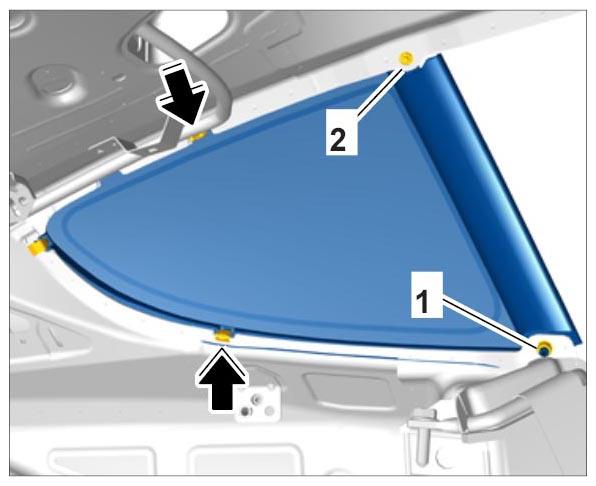

      Fig 2: Removing Side Window
      G10027145Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull out the side window -1-  at the B-pillar until the guide pins are visible.
    1. 2.1. Pull the side window forward out of the side panel guide -arrows-  .
    2. 2.2. Remove side window -1-  .

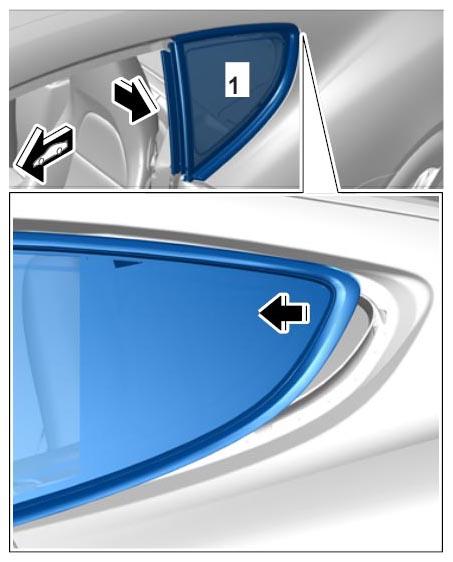

      Fig 3: Removing Side Window
      G10027146Courtesy of PORSCHE CARS NORTH AMERICA, INC.
