Installing Side Window

Information

• The removed side window can be reinstalled if there is no prior damage to the side window  .

1. Installation is performed in reverse order to removal.
2. Screw in fastening nuts securing side window to B-pillar.
   1. 2.1. Tighten fastening nut -1-  to Tightening torque 4 Nm (3 ftlb.) +/-0.5 Nm (+/-0.5 ftlb.)  until secure.
   2. 2.2. Tighten fastening nut -2-  to Tightening torque 2.5 Nm (1.5 ftlb.) +/-0.5 Nm (+/-0.5 ftlb.)  until secure.

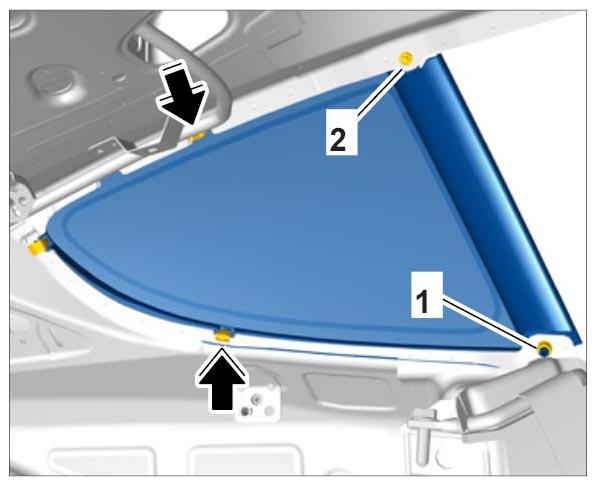

      Fig 1: Removing Side Window

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
