Adjusting Side Window

Adjustment, door window offset with respect to side window.

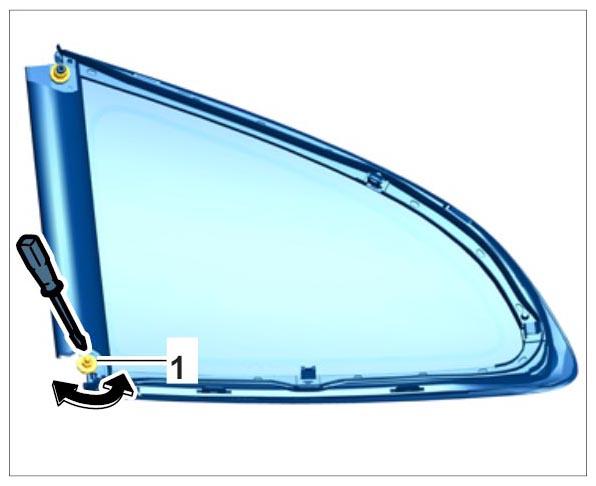

1. 1.1. By turning the guide pin -1- , you can change the setting in the Y-axis.

  Fig 1: Adjusting Side Window
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

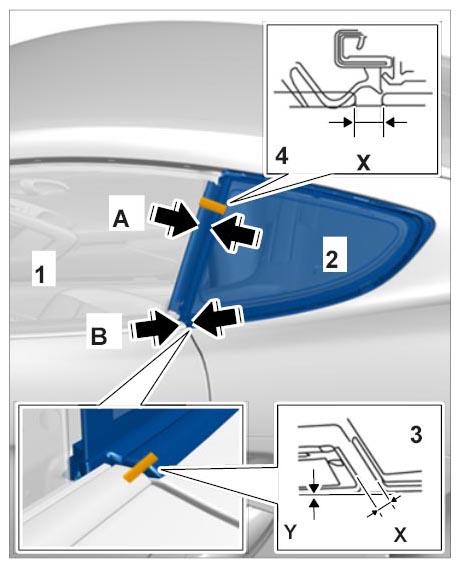

Adjust gap -A- for door window -1- with respect to the side window -2- in the X-axis. Gap between door window and side window Gap dimension 7 mm +/-0.8 mm
1. 2.1. Adjust offset -B- for door window rubber -1- with respect to side window rubber -2- . Offset for door window rubber/side window rubber Gap dimension 3.5 mm +0.7 mm -0.5 N

  Fig 2: Adjusting Gap/Offset Between Door Window And Side Window
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
