Removing Front Window Channel Seal

  1. Open the front door window fully.
  2. Pull rear retaining clip -1-  out of the window channel seal -2-  (-arrow A-  ).
  3. Pull rear window channel seal -2-  up off the sheetmetal flange, starting at the rear end -arrow B-  and pull it off -arrows C-  .

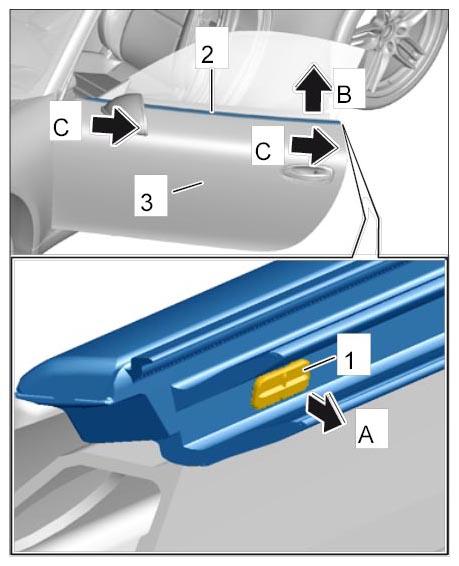

    Fig 1: Removing Front Window Channel Seal
    G10027123Courtesy of PORSCHE CARS NORTH AMERICA, INC.
