Installing Front Window Channel Seal

Information

• When installing the window channel seal, slide it carefully under the cover on the mirror attachment point finisher -4-  .
• The window channel seal must be aligned flush with the outer edge of the door  .

1. Press retaining clip -1-  into the window channel seal -2- -arrow A-  .
2. Fit the window channel seal -2-  onto the sheetmetal door flange -3-  , starting at the front end -arrow B-  and push it in -arrows C-  .
3. Close the front door window fully.

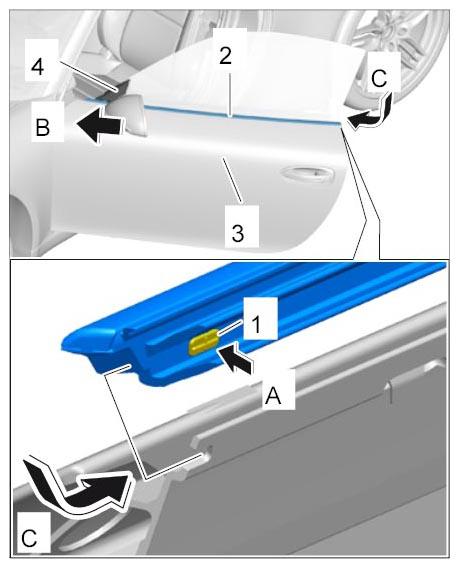

Fig 1: Installing Front Window Channel Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
