Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

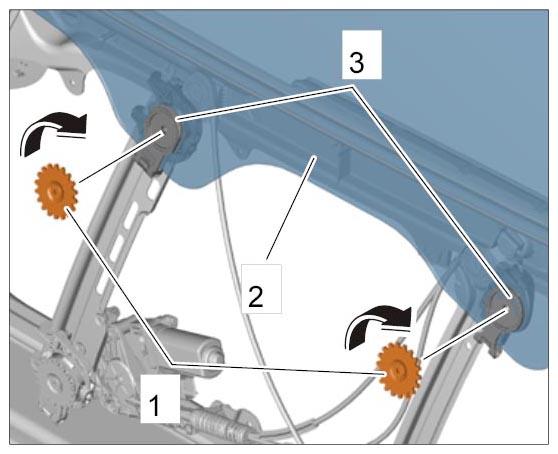

| Fastening screw for door window glass | With special tool | Tightening torque | 6 Nm (4.5 ftlb.) | +/-0.9 Nm (+/- 0.5 ftlb.) | |
|
Securing door window glass |
|||||

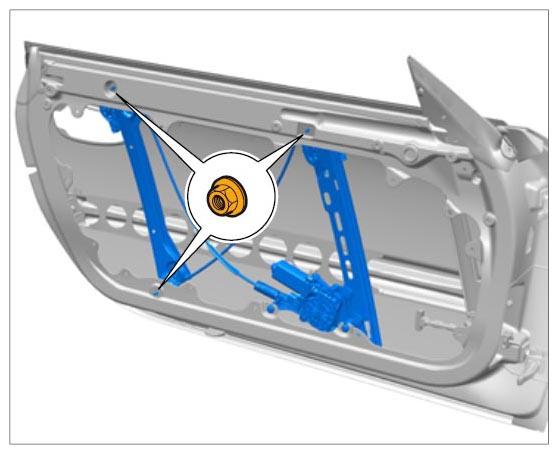

| Fastening nut for power window | Tightening torque | 9.7 Nm (7.5 ftlb.) | +/-0.9 Nm (+/- 0.5 ftlb.) | ||
|
Screwing off fastening nuts |
|||||

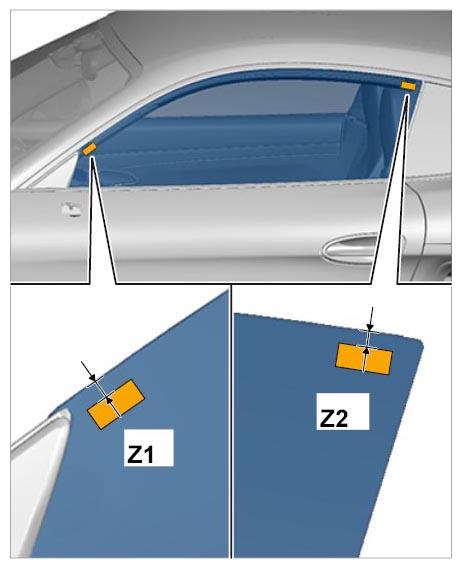

| Insertion depth of front door window | Z1 | Adjustment value | 3.5 mm | +1 mm | |
|

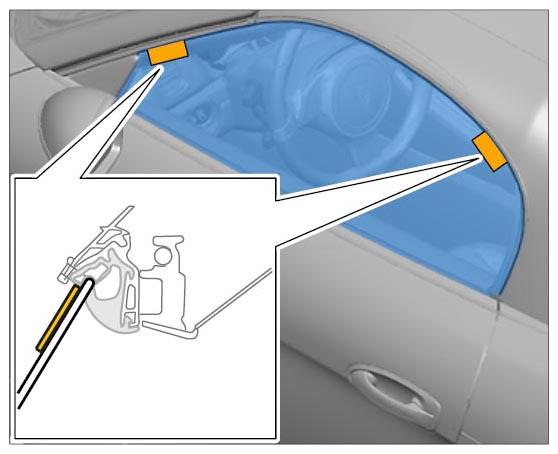

Insertion depth of front door window |
|||||
| Insertion depth of front door window | |||||
| Insertion depth of rear door window | Z2 | Adjustment value | 5.0 mm | +/-1 mm | |
|
Insertion depth of front door window |
|||||
|
Insertion depth of front door window |
|||||

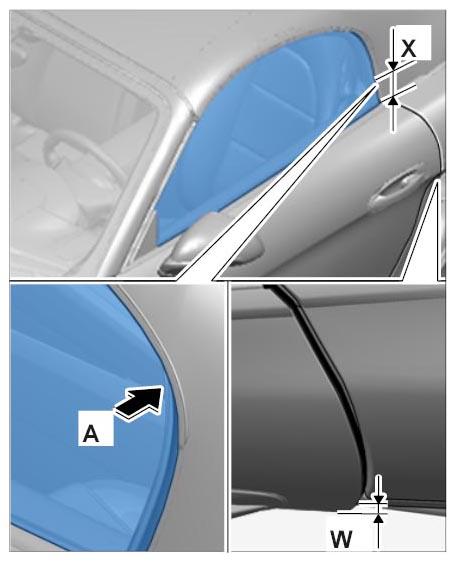

| Measuring point gap | X | Gap dimension | 100 mm | ||
| Door in open position (shown on the Boxster 981) | |||||
| Door opening | W | Adjustment value | 8 mm | ||
|
Door in open position (shown on the Boxster 981) |
|||||
