Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Cutting wire, total length approx. 6 turns of the reel Length 6 m
Cutting wire, pull-in length   Length 1 m
Applying adhesive   Application depth 15 mm

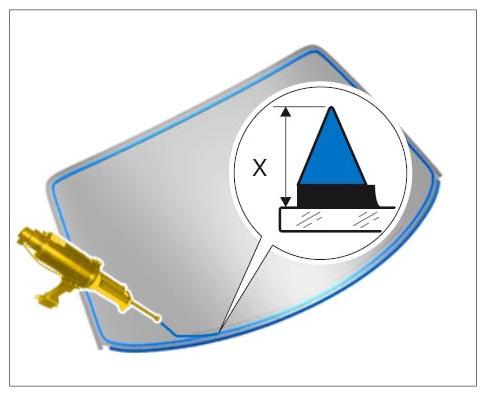

G10027045

Applying adhesive
Gap between windscreen and body   Gap dimension 3.0 mm
