Removing Windscreen

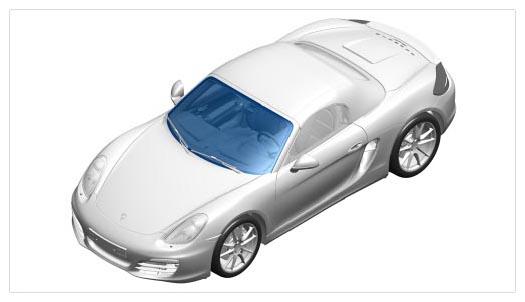

Fig 1: Overview Of Windscreen

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Wear personal protective gear.

→ Always shut off power supply when replacing cutting knife.

1. Unplug windscreen antennas at both sides of the vehicle -Arrows-  .

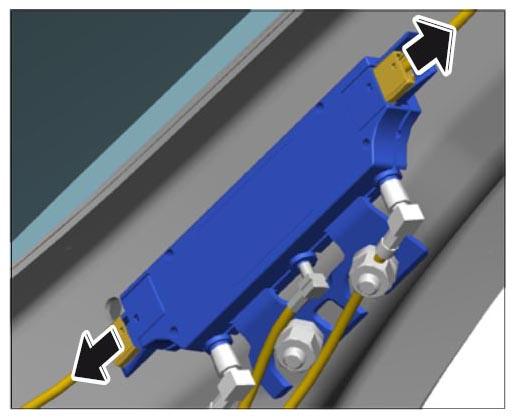

   Fig 2: Disconnecting Antenna Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Disconnect plug connections on the A-pillar at the left and right -Arrows-  .

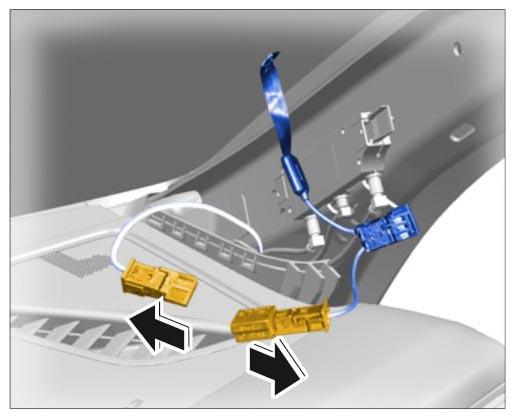

   Fig 3: Disconnecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

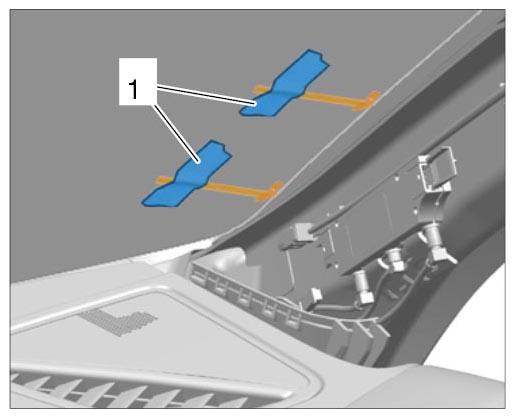

3. Affix all connectors securely to the windscreen using adhesive tape -1-  .

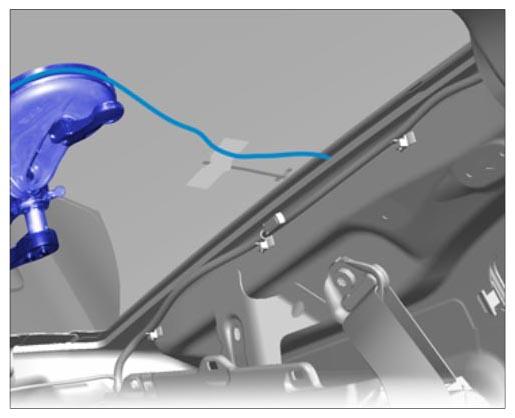

   Fig 4: Affixing Plug Connections Securely

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The fastening force can be increased by moistening the fastening intake  .
4. Attach the outer suction cups suction cups - Stahlwille WE 1140  to the windscreen.
5. Unwind the cutting wire and cut using side cutters. → Length: 6 m

   Information

   • The cutting thread must be positioned under the rim  .
6. Guide the cutting wire into the gap in the glass WE 1487  .
   1. 6.1. Wet the windscreen seal -1-  all the way around with soapy water.
   2. 6.2. Pull the cutting wire -2-  all the way through the gap between the windscreen and body -Arrows-  .
   3. 6.3. Attach the free end of the cutting wire to the wiper linkage.

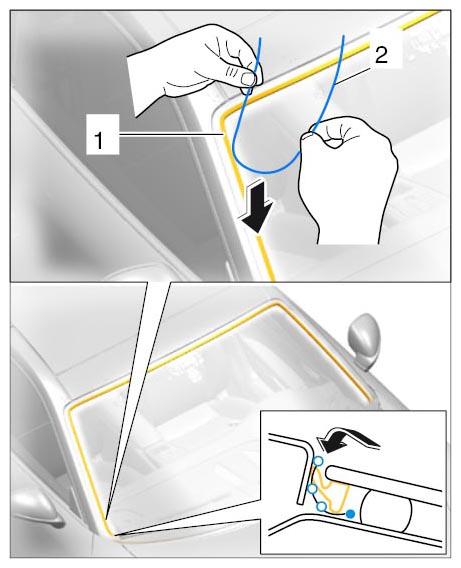

   Fig 5: Guiding Cutting Wire In Glass
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Guide the cutting wire inward.
   1. 7.1. Use the scratch awl -1-  to apply a bead of adhesive from the inside out -Arrow A-  .
   2. 7.2. Thread the cutting wire -2-  into the scratch awl and insert it into the passenger compartment -Arrow B-  .
   3. 7.3. Pull the cutting wire into the passenger compartment. → Length: 1 m

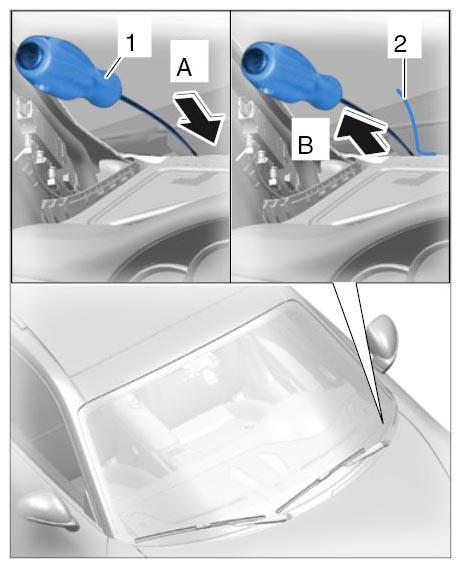

      Fig 6: Guiding Cutting Wire Inward

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      • Make sure not to damage the electric connections when removing the glass with the cutting wire  .
      • Cut up to just before the connection  .
      • Slacken the cutting wire  .
      • Guide the cutting wire past the connection on the inside  .

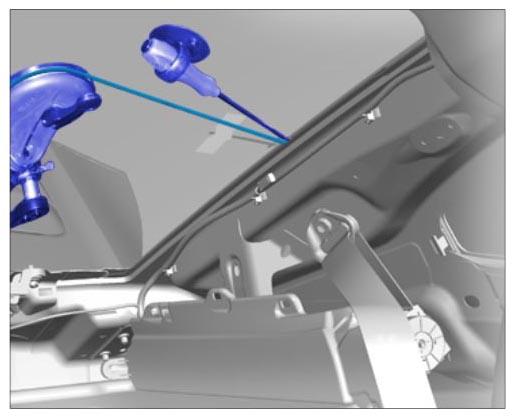

        Fig 7: Slackening Cutting Wire

        Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      • Counter with an awl  .
        Fig 8: Identifying Counter With AWL

        Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      • Make sure that the cutting wire does not press against the electric connection when separating the glass  .
      • Continue separating the window glass  .

      Information

      • In order to guarantee optimum suction cup grip, it is advisable to clean the inside of the glass before removal  .
8. Separate the windscreen.

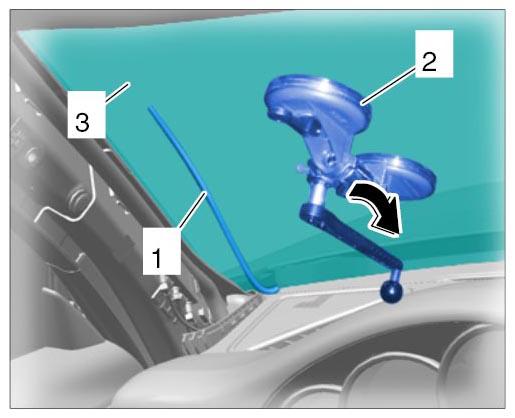

   1. 8.1. Insert the cutting wire -1-  into the bore on the spooling device -2-  .
   2. 8.2. Position the spooling device -2-  in the center of the glass and press the fastening intakes firmly against the windscreen -3-  .
   3. 8.3. Secure the fastening intakes to the windscreen using the actuating lever.
   4. 8.4. Remove the windscreen by winding the cutting wire in -Arrow-  onto the spooling device.

      Reposition the spooling device to reduce the tensile force of the cutting wire when removing the glass.

      Fig 9: Removing Windscreen

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Remove the windscreen.
