Installing Cover For Front Middle Backrest With Active Seat Ventilation

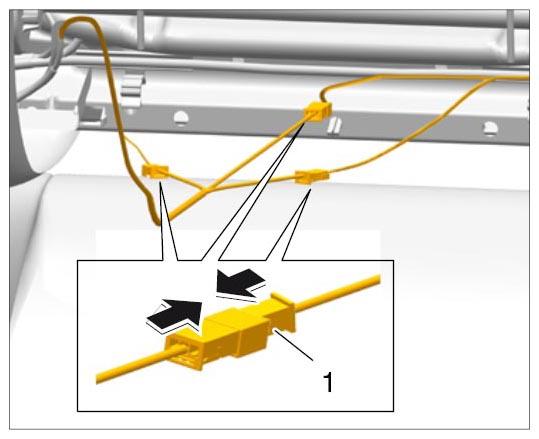

  1. Place cover on the seat surface and plug in the plug connections for backrest seat heating -1-  (-arrows-  ).
    Fig 1: Connecting Plug Connection
    G10025949Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Make sure that the connections are plugged in fully.

  2. Lock the intake plenum.

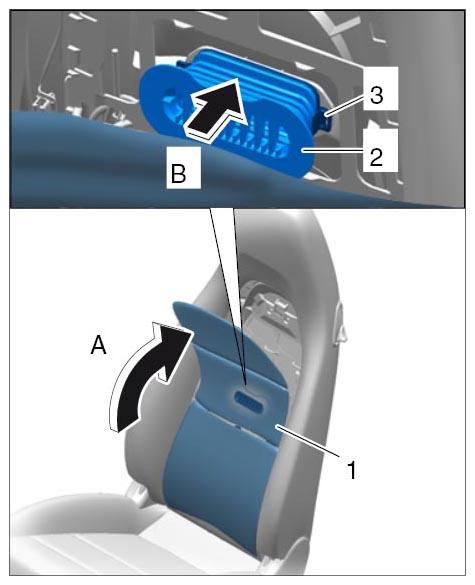

    1. 2.1. Fold up cover -1-  (-arrow A-  ).
    2. 2.2. Press intake plenum -2-  into the air duct -3-  (-arrow B-  ) until the locking lugs lock with an audible click.
      3. Fig 2: Locking Intake Plenum Connection
      G10025950Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Secure front cover.

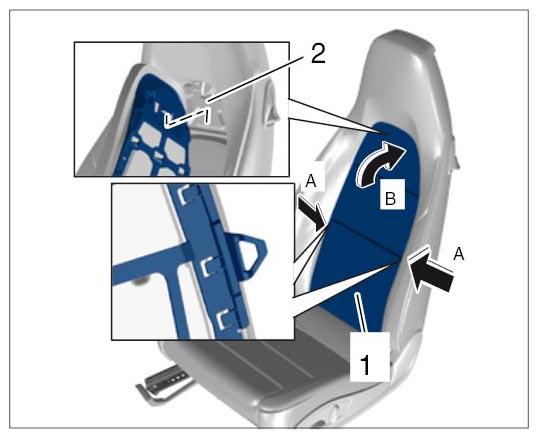

    1. 3.1. Engage cover -1-  at the top in the backrest frame -2-  (-arrow B-  ).
    2. 3.2. Press in cover -1-  in the middle -arrows A-  until the locking lugs at the side engage.
    Fig 3: Securing Cover At Front
    G10025951Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Secure cover at the back.

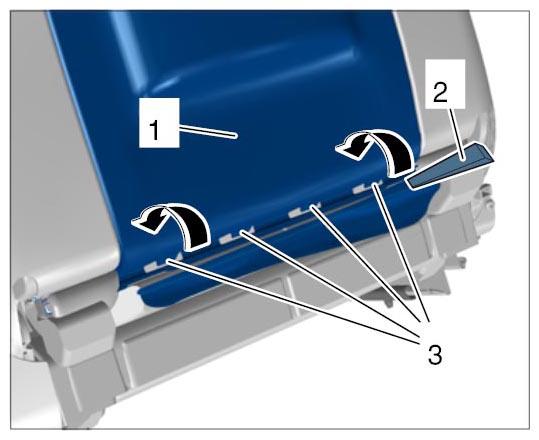

    1. 4.1. Press cover -1-  into the backrest shell -2-  at the bottom using a plastic wedge -3-  (-arrows-  ) until it locks with an audible click.
      2. Fig 4: Securing Cover
      G10025952Courtesy of PORSCHE CARS NORTH AMERICA, INC.
