Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

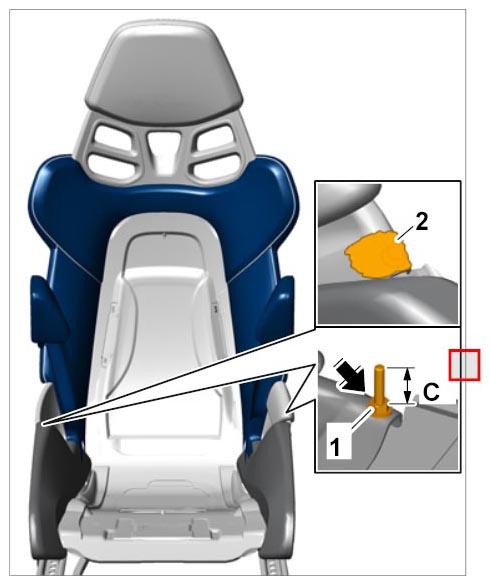

Bowden cable for belt feed-through element Dimension C Length 25 mm
G10025870

Securing bowden cable
Fastening clamp for seat shell Dimension B Length 55 mm
G10025871

Backrest clamps

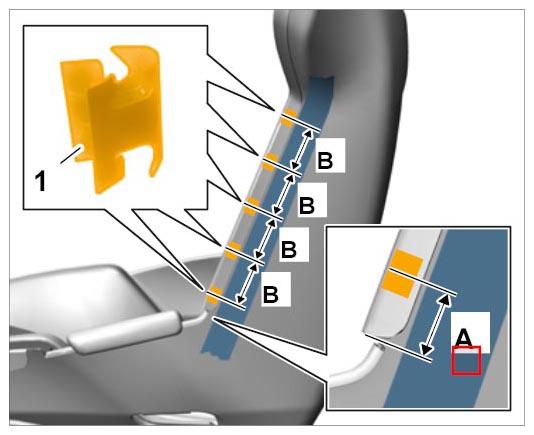

Fastening clamp for seat shell Dimension A Length 20 mm
G10025872

Backrest clamps
