Removing Padding For Front Middle Backrest

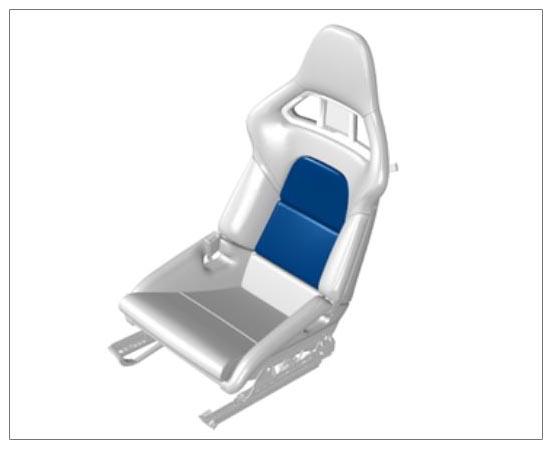

Fig 1: Identifying Padding For Front Middle Backrest Position (Folding Sports Bucket Seat)
G10025841Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release Velcro fasteners -1-  on the back of the padding -2-  all the way around (Fig 2).
  2. Fold cover -3-  over all the way around (Fig 2).
  3. Fig 2: Releasing Rear Cover
    G10025842Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Carefully detach Velcro strip -1-  on the cover from the Velcro fastener on the front of the padding -2-  (-arrows-  ).
  5. Remove cover -3-  .

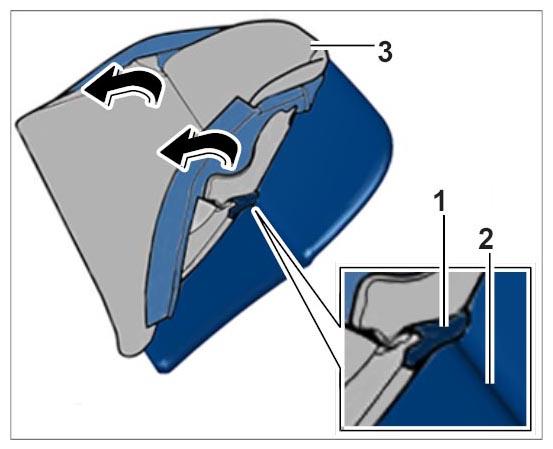

  6. Fig 3: Detaching Cover At Front
    G10025843Courtesy of PORSCHE CARS NORTH AMERICA, INC.
