Installing Cushion With Cover For Front Middle Backrest

  1. Install cushion with cover.
    1. 1.1. Align cushion with cover -1-  on the seat backrest cover.

      Make sure that the seam of the cover for the middle backrest -arrow A-  is continued on the backrest cover -arrow B-  .

    2. 1.2. Press Velcro fasteners -2-  firmly onto the seat shell -3-  (-arrow-  ).

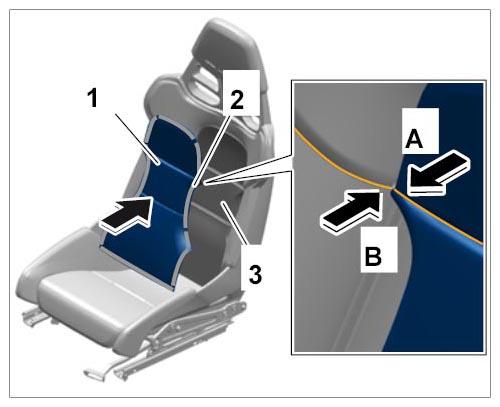

      Fig 1: Installing Cushion With Cover For Middle Backrest
      G10025828Courtesy of PORSCHE CARS NORTH AMERICA, INC.
