Installing Suction Fan For Backrest Surface

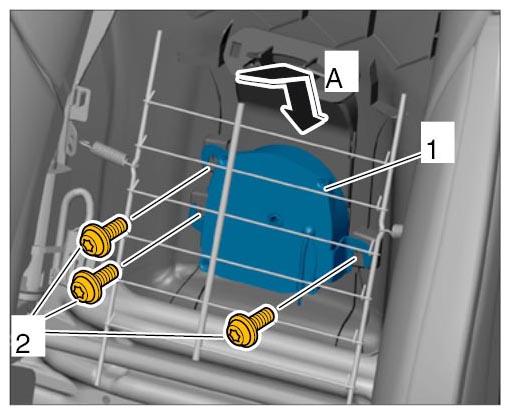

- Guide in the suction fan for the backrest surface -1-
from above -A-
and secure with the three fastening screws -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

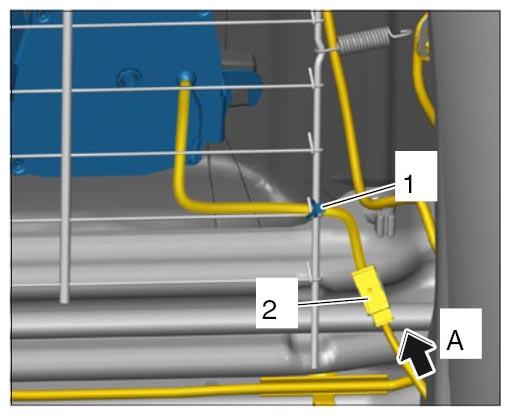

- Connect electric plug connection -2-
on the suction fan for the backrest surface -A-
until the connector engages securely. Wrap fabric tape around the electric plug connection for the suction fan for the backrest surface -2-
and secure it to the base carrier with a tie-wrap -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Connect the battery.
- Perform a function test.
- Disconnect the battery.
