Removing Cover For Front Seat

The following step is required only for covers without seat occupancy detection

  1. Detach cover.
    1. 1.1. Loosen Velcro fastener on center cushion -1-  (-arrows A-  ).
    2. 1.2. Loosen Velcro fasteners -2-  on the back of the padding -3-  all the way around -arrows B-  .

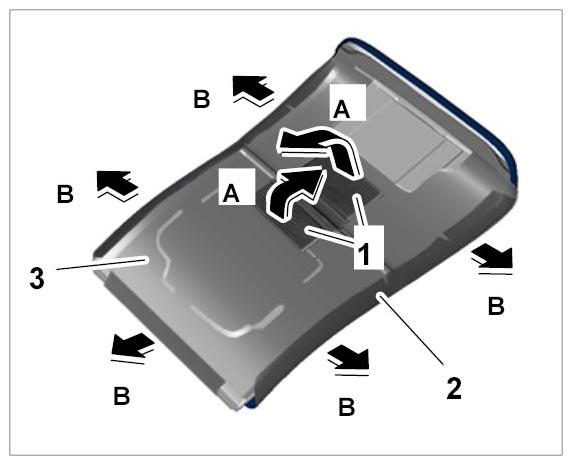

      Fig 1: Detaching Cover (Row)
      G10025785Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    The following step is required only for covers with seat occupancy detection

  2. Detach cover.
    1. 2.1. Loosen Velcro fastener on Centre cushion -1-  (-arrow A-  ).
    2. 2.2. Loosen Velcro fasteners -2-  on the back of the padding -3-  all the way around -arrows B-  .

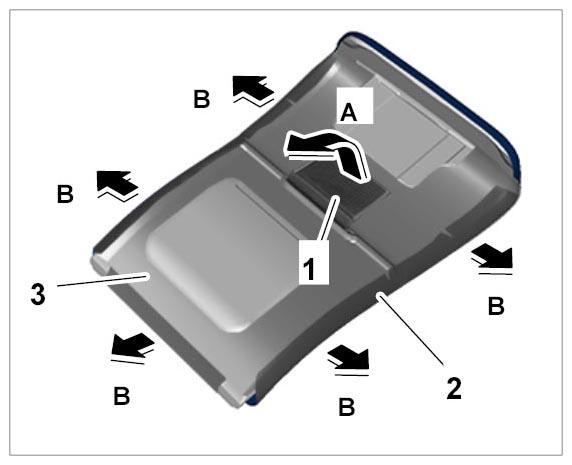

      Fig 2: Detaching Cover (USA)
      G10025786Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove cover.
    1. 3.1. Fold cover -2-  over all the way around -arrows-  .
    2. 3.2. Carefully detach Velcro strip -1-  on the cover -2-  from the Velcro fastener on the front of the padding -3-  .

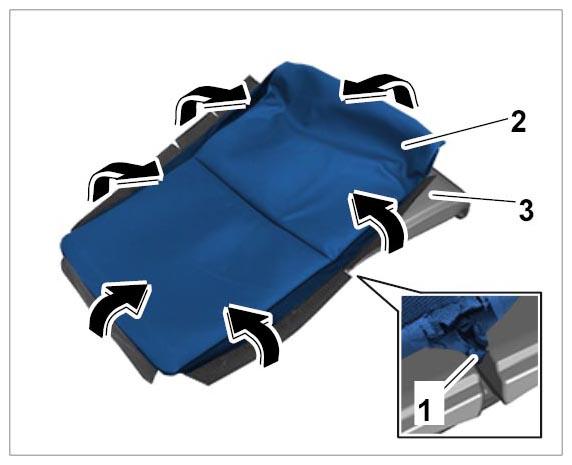

      Fig 3: Folding Cover Over
      G10025787Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove cover.
