Installing Padding For Front Seat: Notes

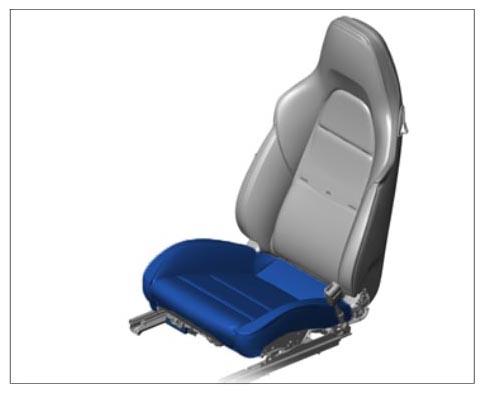

Fig 1: Identifying Padding For Seat Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Place padding -1- on the seat frame -arrow A- and align it with the seat frame -arrow B- .

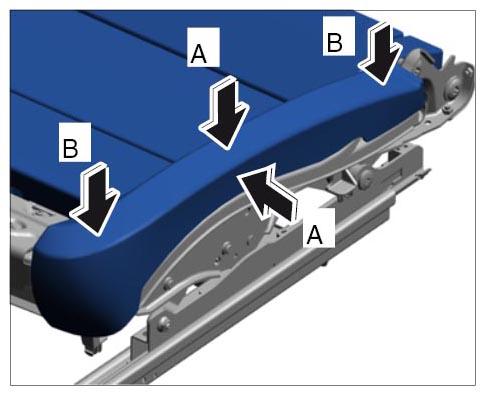

Fig 2: Aligning Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adhere seat padding to seat frame.
Information

Sealing surface of seat frame must be clean and free of grease.
1. 2.1. Apply adhesive to the marked area -A- of the padding.

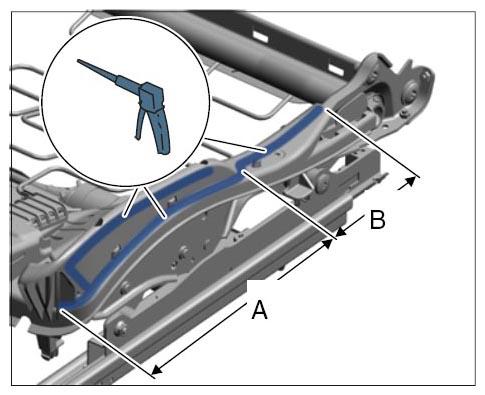

  Fig 3: Applying Adhesive Marked Area Of Padding
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

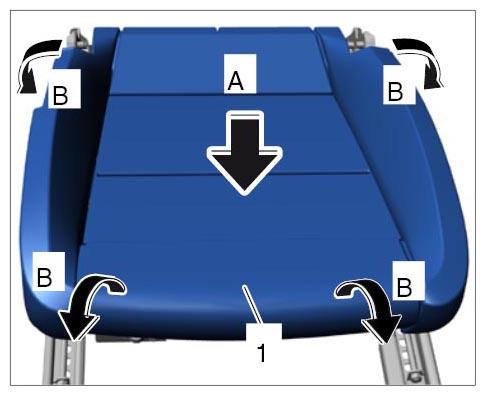

2. 2.2. Press the padding on forcefully in the area -A- (-arrows A- ).
  Information

  Sealing surface of seat frame must be clean and free of grease.
3. 2.3. Lift padding in area -B- and apply adhesive to the marked area -B- .
4. 2.4. Press the padding on forcefully in the area -B- (-arrows B- ).

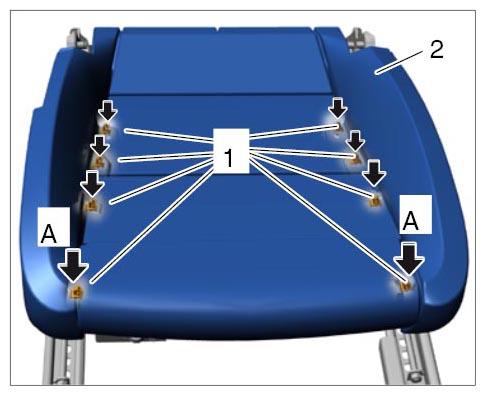

Clip in fixing clips -1- underneath the padding -2- (-arrows A- ).

Fig 5: Clipping Fixing Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
