Removing Suction Fan For Seat Surface

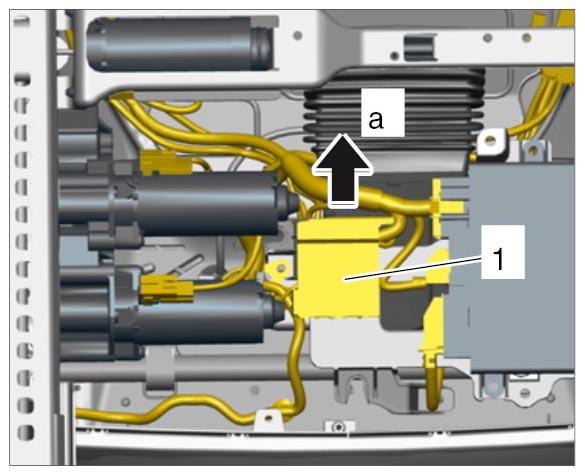

- Press central connector -1-
for electric seat adjustment out of the holder -a-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

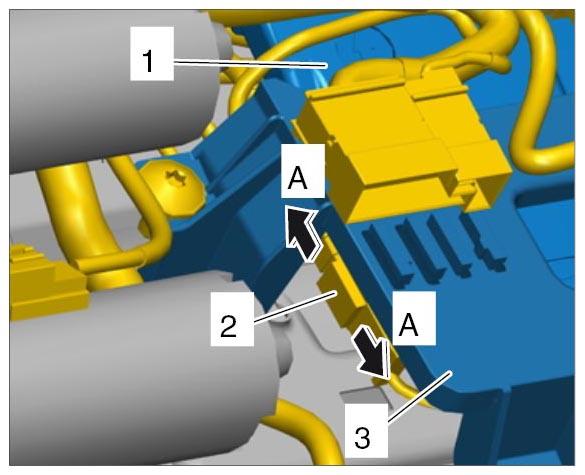

- Unplug electric plug connection -2-
on the holder -3-
for the suction fan -A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

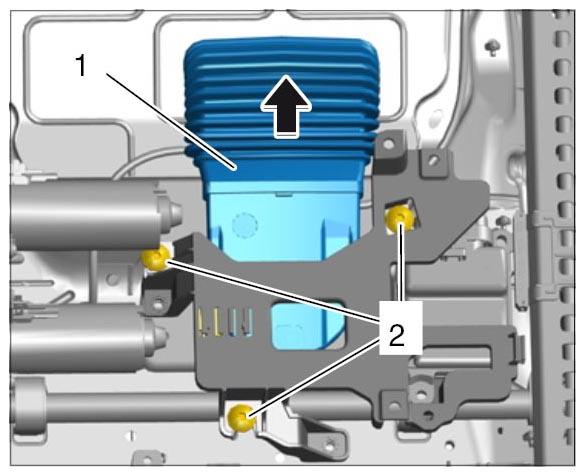

- Unscrew the three fastening screws -2-
on the suction fan -1-
and remove the suction fan -1-
(-Arrow-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

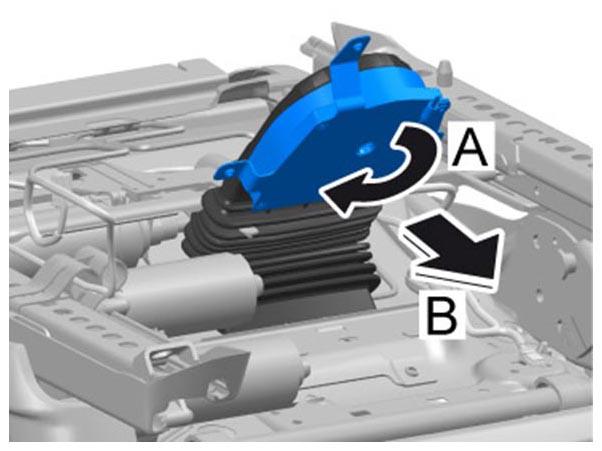

- Remove suction fan.
- 4.1. To release the suction fan, turn it clockwise -A-
and counter at the air duct while doing this.
- 4.2. Remove suction fan -B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
