Component Information

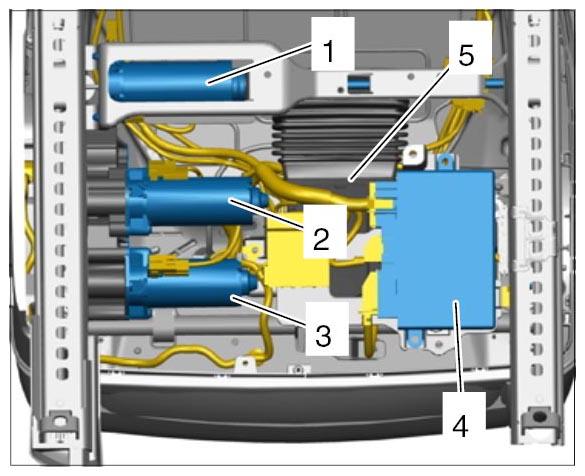

  1. Motor for seat adjustment
  2. Motor for rear vertical adjustment
  3. Motor for front vertical adjustment
  4. Control unit for memory seat adjustment
  5. Suction fan for seat surface
    6. Fig 1: Identifying Suction Fan Position
    G10025688Courtesy of PORSCHE CARS NORTH AMERICA, INC.
