Installing Loop For Backrest Release

Pull bowden cable out through the backrest shell.
Information

When engaging the bowden cable, make sure that the cables are not twisted.

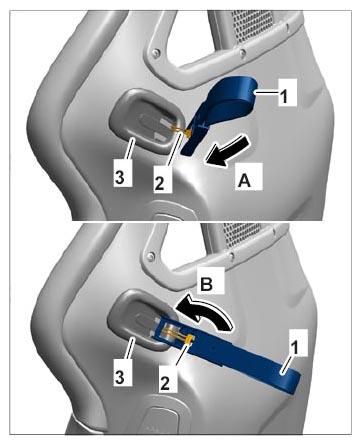

Engage bowden cable -2- at the loop -1- (-arrow A- ).
Guide loop -1- into the collar -2- (-arrow B- ).

Fig 1: Installing Loop For Backrest Release

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

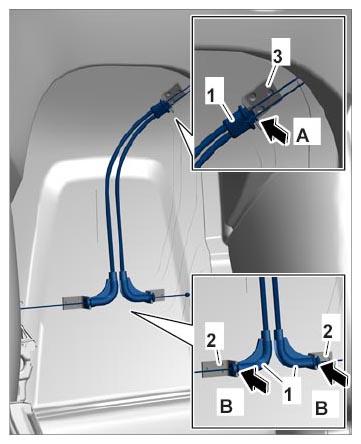

Press bowden cable -1- into the upper bracket -3- (-arrow A- ).

Fig 2: Engaging Bowden Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press bowden cable -1- into the lower brackets -2- (-arrows B- ).
Check backrest release by pulling the loop.

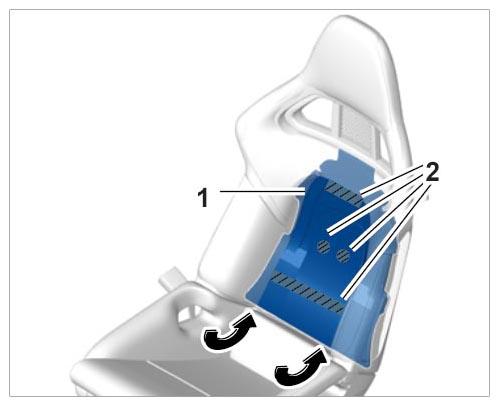

Check bonding points -2- on the foam part -1- and apply new adhesive if necessary.

Fig 3: Installing Foam Part Of Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

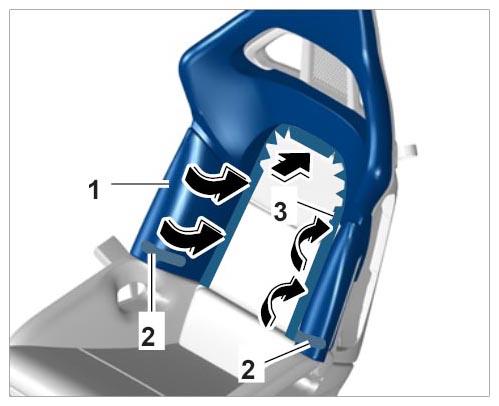

Position foam part -1- (-arrows- ) and press it on at the bonding points -2- .
Align cover -1- with the side bolsters.

Fig 4: Securing Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure the Velcro fasteners join cleanly.
Press on Velcro fasteners -2- and -3- (-arrows- ).
