Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

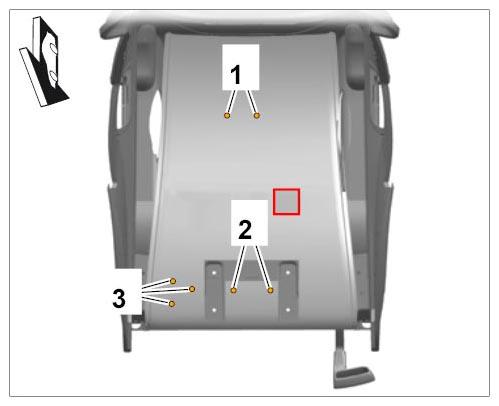

Holder for plug connections on seat shell Item 2 (M5 x 16) Tightening torque 4 Nm (3 ftlb.)
G10027851

Securing brackets

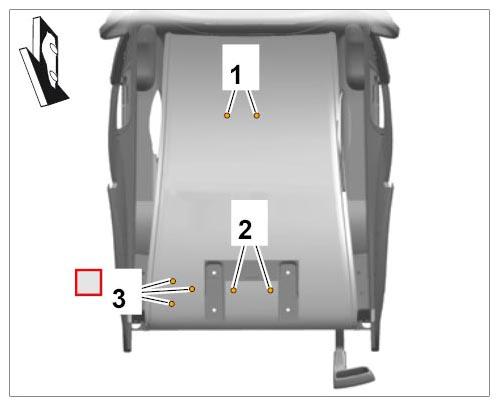

Control unit holder to seat shell Item 3 (M5 x 16) Tightening torque 6 Nm (4.5 ftlb)
G10027852

Securing brackets
