Removing Front Seat Frame

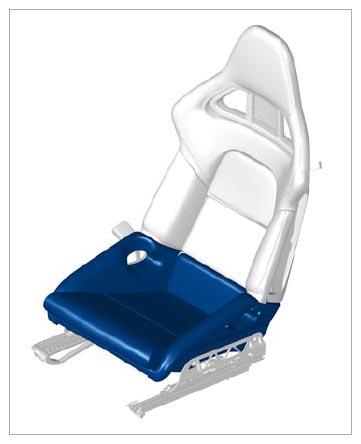

Fig 1: Identifying Front Seat Frame Position (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Mask the seat shell with adhesive tape.

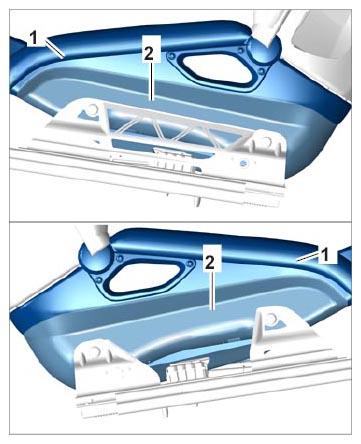

1. Mask the seat shell -1-  at the left and right in the marked area with adhesive tape -2-  (2-3 layers).
   Fig 2: Masking Seat Shell

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Two persons are needed to remove and install the backrest shell.

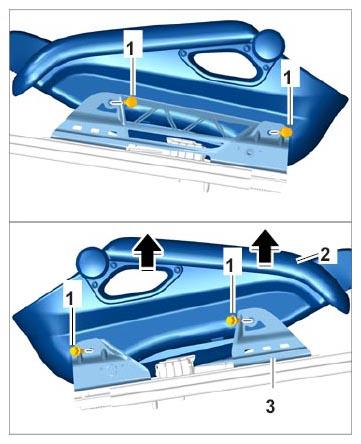

2. Unscrew and remove fastening screws -1-  at the left and right.
3. Lift seat shell -2-  up and remove it from the bracket -3-  (-arrows-  ).
Fig 3: Removing Seat Shell
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
