Technical values

Location Description Type Basic value Tolerance 1 Tolerance 2
Seat frame to seat shell Item 1 (M8 x 40) Tightening torque 22 Nm (16 ftlb.)
G10027728

Removing seat frame
Fastening nut securing fire extinguisher holder to seat shell Item 1 (M6) Tightening torque 7 Nm (5 ftlb.)

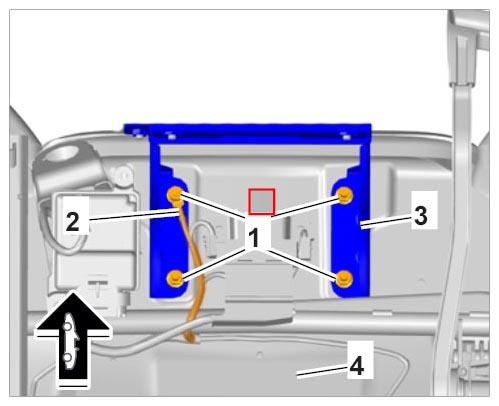

G10027729

Removing bracket
