Loosening Seat Screws At The Rear

  1. Release front seat at the rear.
    1. 1.1. Move seat to front end position.
    2. 1.2. Unscrew rear fastening screws -1-  from the seat rails at the left and right -2-  .

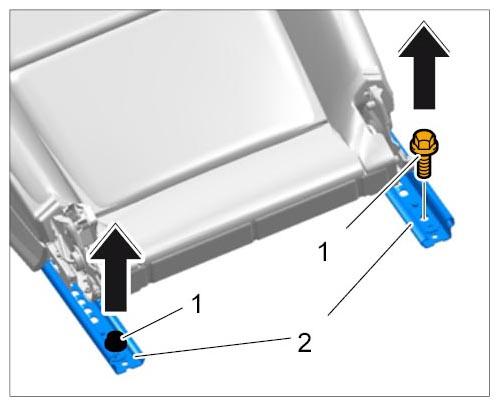

      Fig 1: Loosening Seat Screws At Rear
      G10027709Courtesy of PORSCHE CARS NORTH AMERICA, INC.
