Removing Cupholder

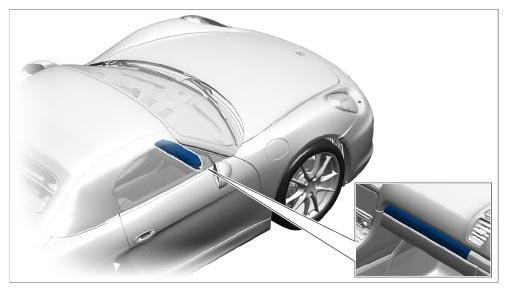

Fig 1: Identifying Cupholder Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open the glove compartment -1- .
1. 1.1. Open the cupholder flap -2- .
2. 1.2. Pull out drinks slots -3- .

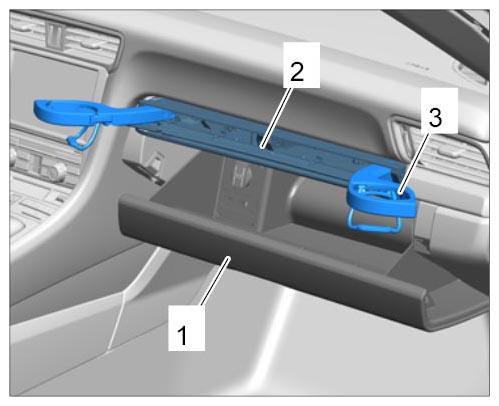

  Fig 2: Opening Cupholder Flaps
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release cupholder.
1. 2.1. Release fastening clamp on the left and right -arrow- .

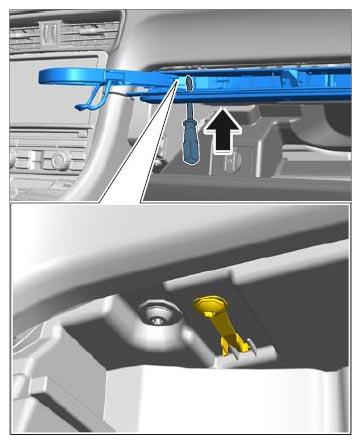

  Fig 3: Releasing Cupholder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cupholder.
1. 3.1. Pull cupholder -1- out of the guide towards the passenger compartment -arrow- .

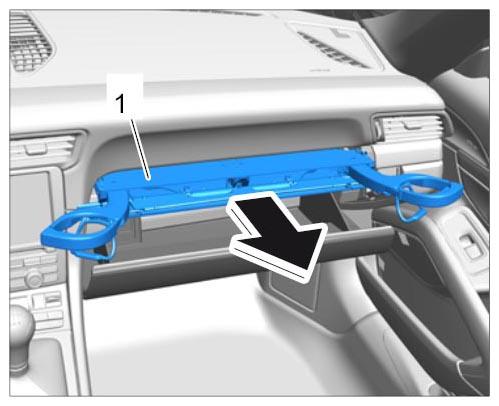

  Fig 4: Removing Cupholder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
