Removing GPS Antenna

  1. Unclip -1-  GPS antenna -a-  and remove from mounting -A-  .
    1. 1.1. Release -2-  antenna connector of GPS antenna -b-  and unplug -2-  the connector -B-  .

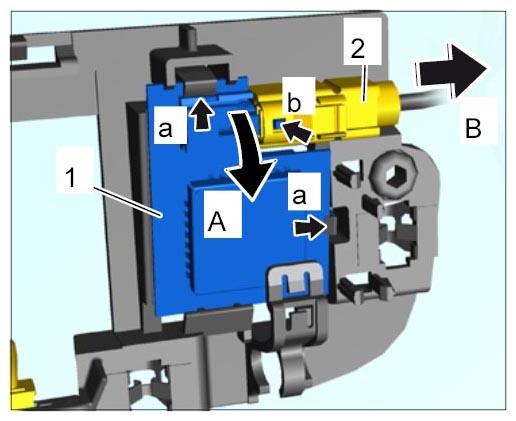

      Fig 1: Removing GPS Antenna
      G10028290Courtesy of PORSCHE CARS NORTH AMERICA, INC.
