Installing GPS Antenna

  1. Insert -2-  antenna connector -1-  on the GPS antenna -C-  until the antenna connector -2-  engages securely.
    1. 1.1. Insert GPS antenna -1-  into the bracket -A-  and clip it in -B-  .

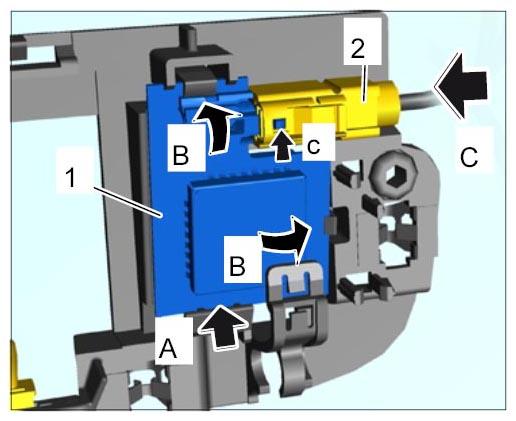

      Fig 1: Installing GPS Antenna
      G10028291Courtesy of PORSCHE CARS NORTH AMERICA, INC.
