Sliding Roof

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance 1
Fastening screw for air deflector bracket, left/right		Tightening torque	2 Nm (1.5 ftlb.)
Fastening screw for air deflector cable	Item 1	Tightening torque	0.5 Nm (0.5 ftlb.)	0.7 Nm (0.5 ftlb.)
Securing air deflector cable
Fastening screw on lid at front		Tightening torque	8 Nm
Fastening screw on lid at centre/rear		Tightening torque	5 Nm

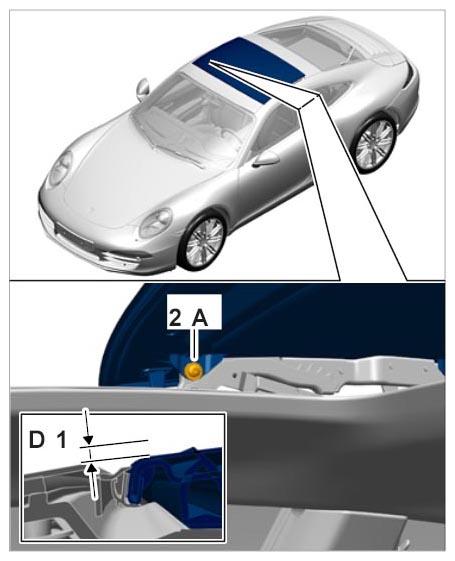

Sliding-roof panel to roof, front (D1)	Only lowered	Gap dimension	0 mm	-0.5 mm
Adjusting height at the front

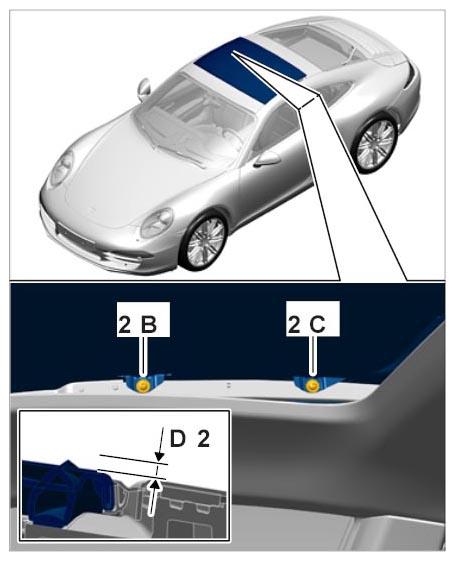

Sliding-roof panel to roof, rear (D2)	Only raised	Gap dimension	0 mm	+0.5 mm
Adjusting height at the rear

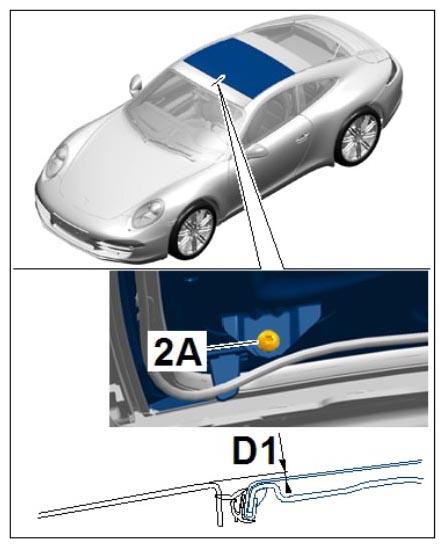

Front fastening screw	Item 2A	Tightening torque	8 Nm (6 ftlb.)
Adjusting height at the front

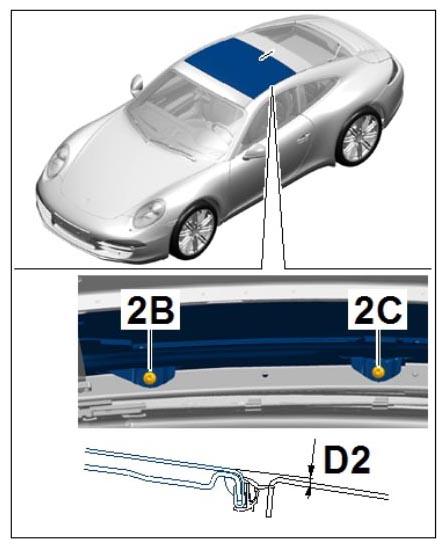

Fastening screw on panel, centre/rear	Item 2B, 2C	Tightening torque	5 Nm (3.5 ftlb.)
Adjusting height at the rear

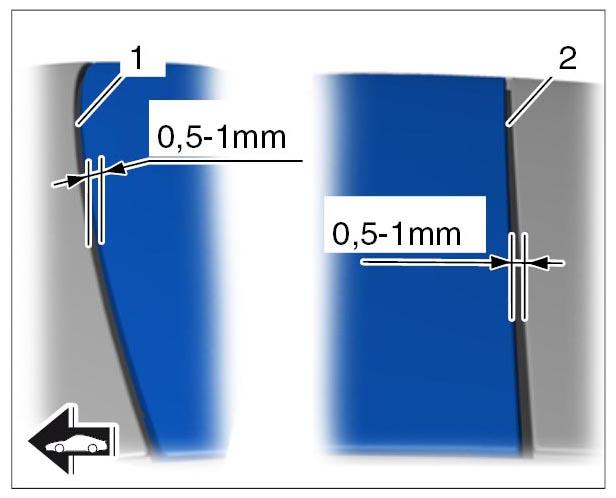

Gap between sliding roof panel and roof		Gap dimension	0.5 mm	-1 mm
Checking panel joints

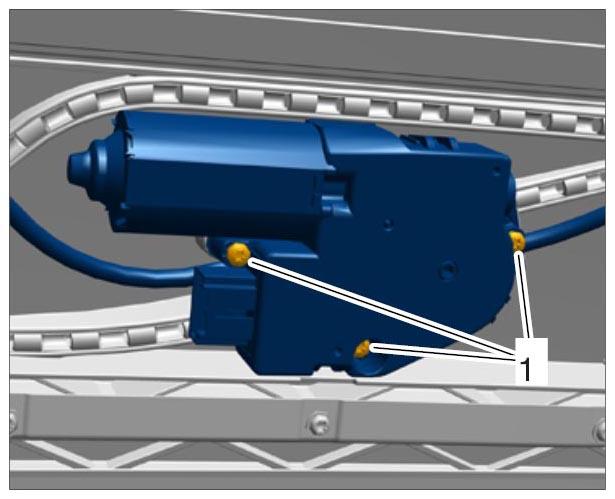

Fastening screw securing sunroof motor		Tightening torque	3 Nm (2 ftlb.)
Removing motor
Fastening screw securing sun blind motor		Tightening torque	3 Nm (2 ftlb.)
Removing motor

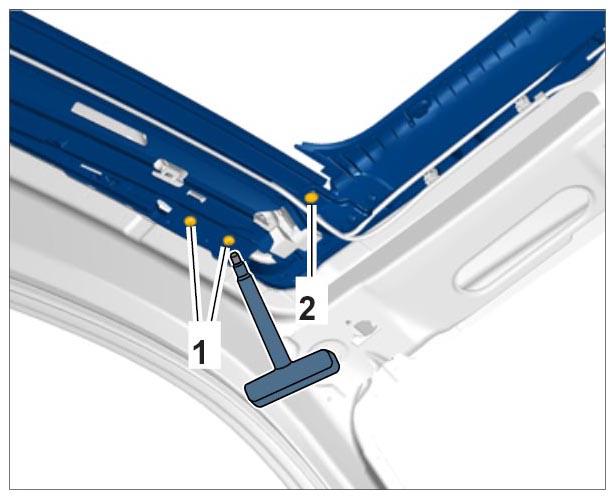

Fastening screw for outer front mounting unit	Item 1	Tightening torque	3 Nm (2 ftlb.)
Front mounting unit
Fastening screw for inner front mounting unit	Item 2	Tightening torque	3 Nm (2 ftlb.)
Front mounting unit

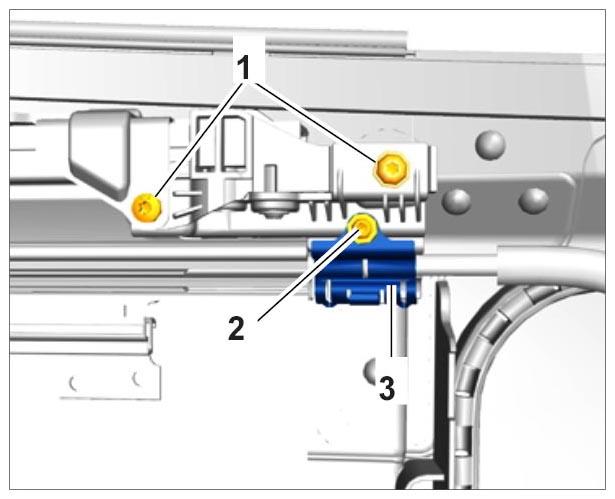

Fastening screw for rear mounting unit	Item 1	Tightening torque	3 Nm (2 ftlb.)
Rear mounting unit
Fastening screw securing retaining bracket to guide tube	Item 2	Tightening torque	3 Nm (2 ftlb.)
Rear mounting unit

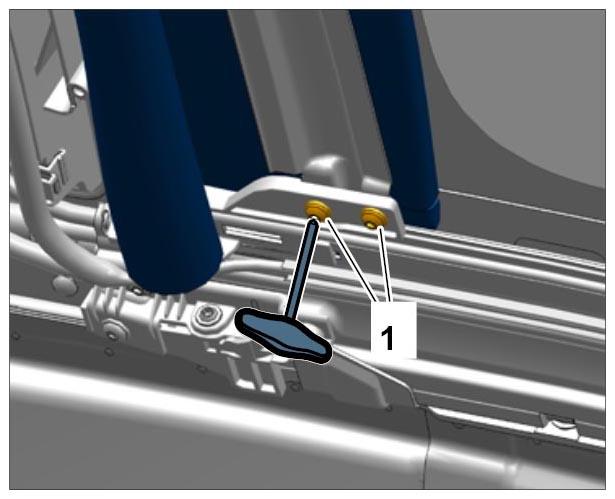

Fastening screw securing mounting unit to assembly frame	Item 1	Tightening torque	3 Nm (2 ftlb.)
Assembly frame mounting

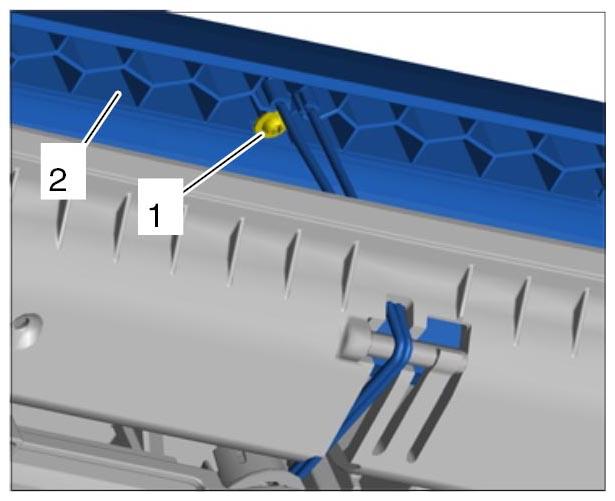

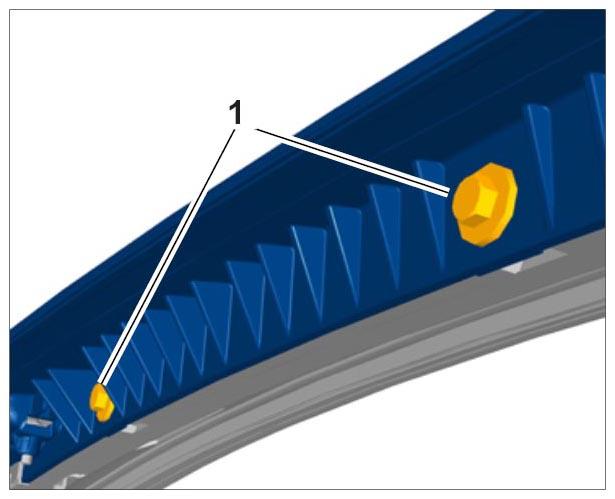

Fastening screw for transverse bow	Item 1	Tightening torque	2.5 Nm (2 ftlb.)
Transverse bow mounting
