Installing Main Headlight Lid

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position lid on the main headlight and press it on. Make sure that the lid engages at one attachment point at the top and at two attachment points at the bottom.
    Fig 1: Positioning Lid
    G09830856Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in the four fastening screws -1-  for the lid.
    Fig 2: Screwing In Fastening Screws
    G09830857Courtesy of PORSCHE CARS NORTH AMERICA, INC.


  1. Position lid on the main headlight and press it on. Make sure that the lid engages at one attachment point at the top and at two attachment points at the bottom.

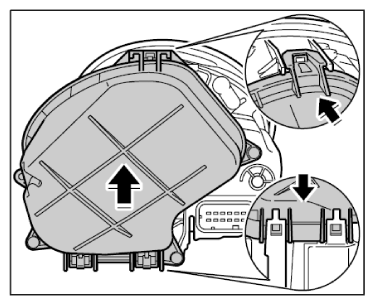

    Fig 1: Positioning Lid
    G09830868Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in the four fastening screws -1-  for the lid.

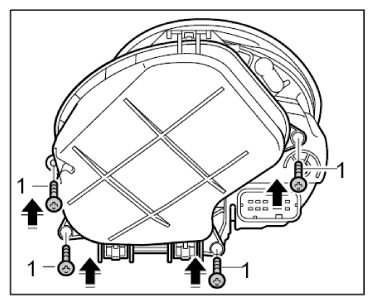

    Fig 2: Screwing In Fastening Screws
    G09830869Courtesy of PORSCHE CARS NORTH AMERICA, INC.
