Removing Control Unit For Garage Door Opener/Home Link

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

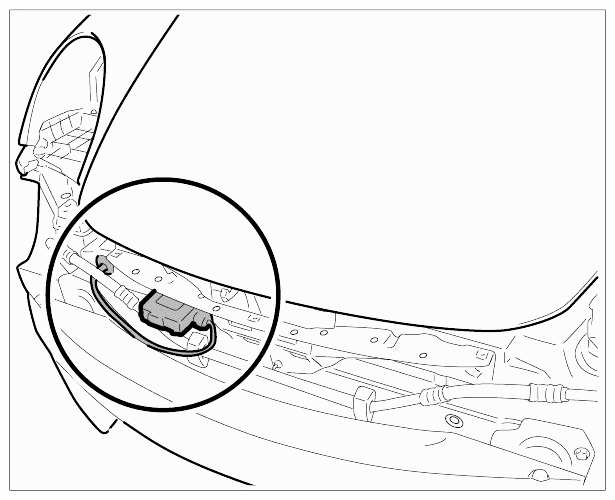

Fig 1: Identifying Control Unit For Garage Door Opener/Homelink
G09593704Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip control unit from the holder -A-  .

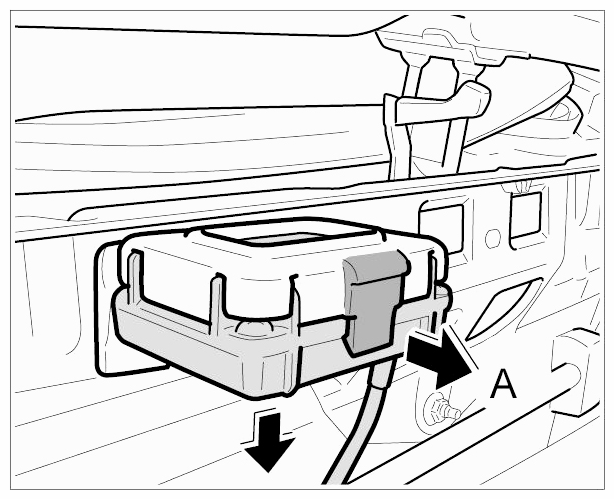

    Fig 2: Unclipping Control Unit
    G09593705Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release electric connector -A-  and remove it from control unit.

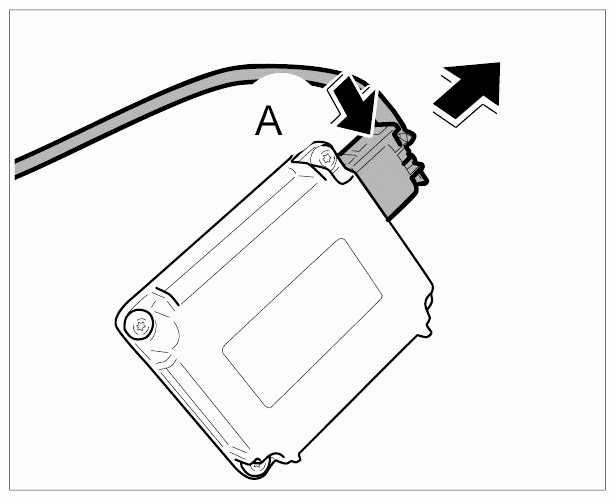

    Fig 3: Releasing Electric Connector
    G09593706Courtesy of PORSCHE CARS NORTH AMERICA, INC.
