Installing KESSY/PAS Control Unit

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

Depending on the vehicle equipment, the control unit has one or two connectors.

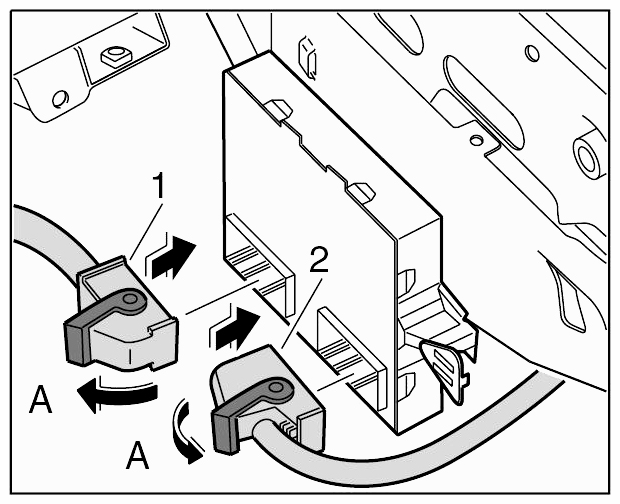

Press both electrical connectors -1, 2- into the control unit and lock them until they are felt to engage.

Fig 1: Inserting Electrical Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

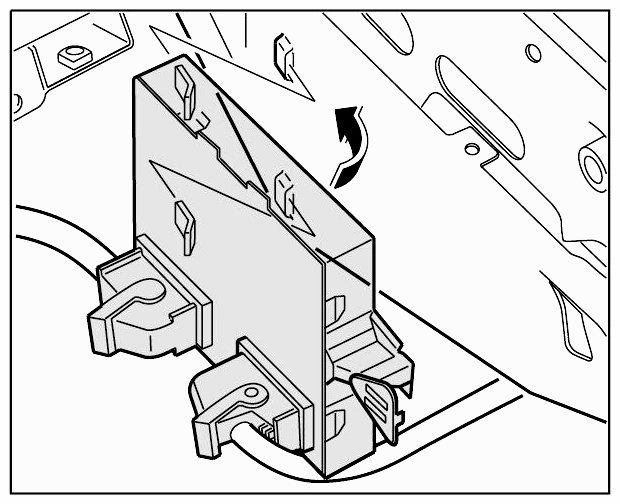

Engage control unit in support for wiring harness with both retaining lugs.

Fig 2: Engaging Control Units At Both Retaining Lugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

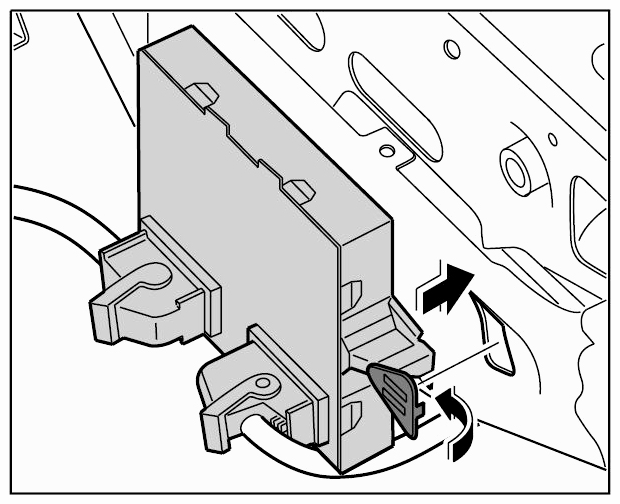

Clip in control unit on the support for the steering wiring and engage the locking mechanism for the lock.

Fig 3: Clipping In Control Unit + Pivoting Out Securing Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
