Removing Tilt Sensor Control Unit

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Information

The tilt sensor is integrated into the tilt control unit and cannot be separately replaced.

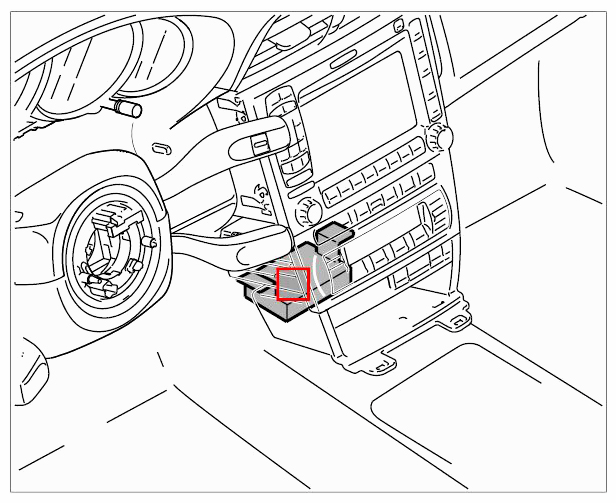

Fig 1: Overview Of Tilt Sensor Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

WARNING: Risk of damage to electronic control modules.

If care is not taken, electrical and electronic components may be destroyed.

→ Before removing the control module, switch off the ignition and remove the ignition key.

Switch off ignition and remove ignition key.

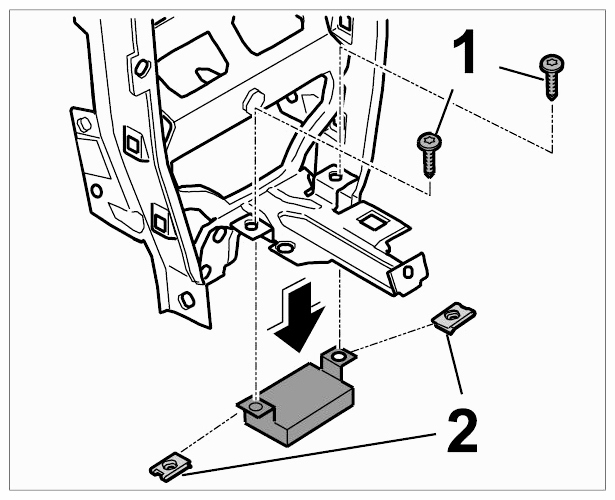

Unscrew the two fastening nuts -1- and remove the tilt sensor control unit.
Remove the two sheetmetal nuts -2- from the tilt sensor control unit.

Fig 2: Unscrewing Fastening Screws Of Tilt Sensor Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

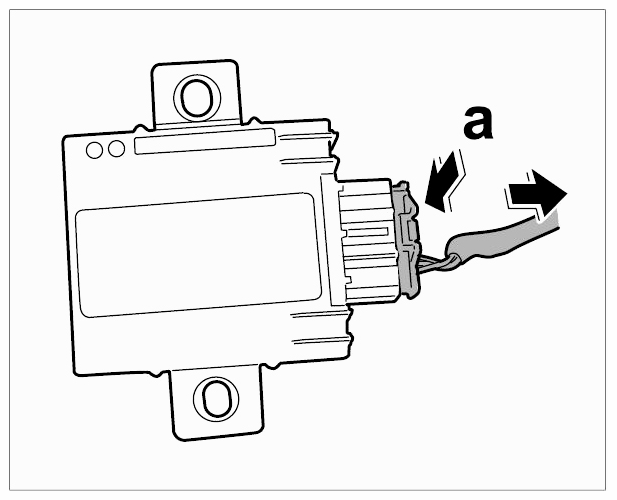

Unlock plug for tilt sensor control unit -Arrow a- and remove.

Fig 3: Removing Plug For Tilt Sensor Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
