Installing Bulb For Door Warning Light

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only use the relevant bulb specified in the bulb table → Bulb table .

  1. Insert new bulb in the bulb socket and insert the socket into the door warning light opening.

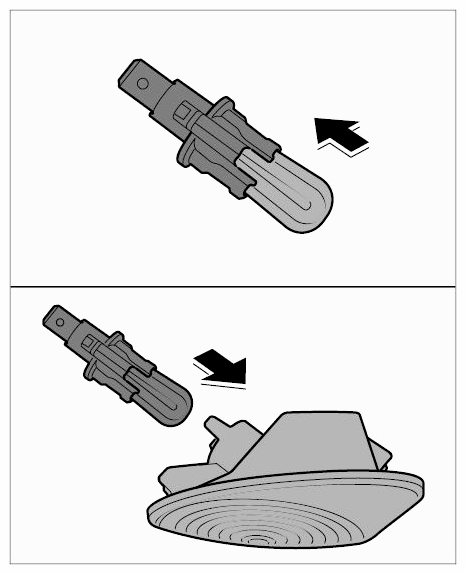

    Fig 1: Installing Door Warning Light Bulb
    G09593622Courtesy of PORSCHE CARS NORTH AMERICA, INC.
