Disconnecting Plug Connections For Front Apron

  1. Disconnect plug connection at the left and right wheel housing.
    1. 1.1. Release the plug connection -1-  by pressing in the locking lug -Arrow A-  and pull it off -Arrow B-  .

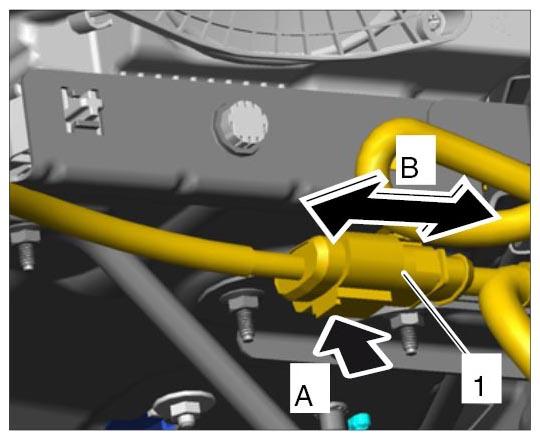

      Fig 1: Disconnecting Plug Connection (Shown On 991)
      G10026969Courtesy of PORSCHE CARS NORTH AMERICA, INC.
