Technical Values

Location Description Type Basic Value Tolerance 1 Tolerance 2
Fastening Screw Securing Bumper To Bodyshell Item 2 Tightening Torque 23 Nm (17 ft. lbs.) +/-2 Nm (+/- 1.5 ft. lbs.)

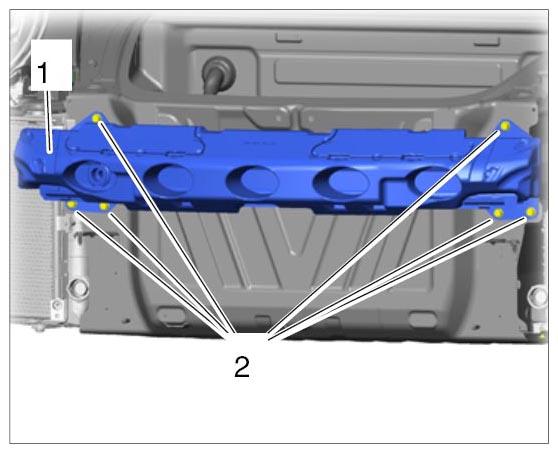

G10026960

Front Bumper
