Removing Rear Tire Pressure Monitoring (TPM) Antenna

→ Remove the ignition key and switch off load before disconnecting or removing load.

1. Release electric plug connection for TPM antenna -A-  and disconnect it.

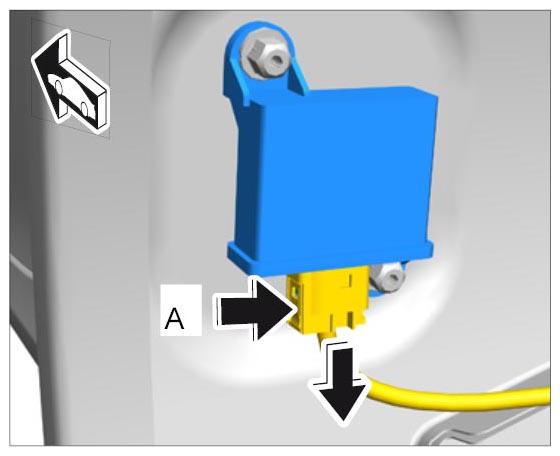

   Fig 1: Disconnecting Electric Plug Connection For Rear TPM Antenna

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew fastening nuts -1-  and remove TPM antenna.

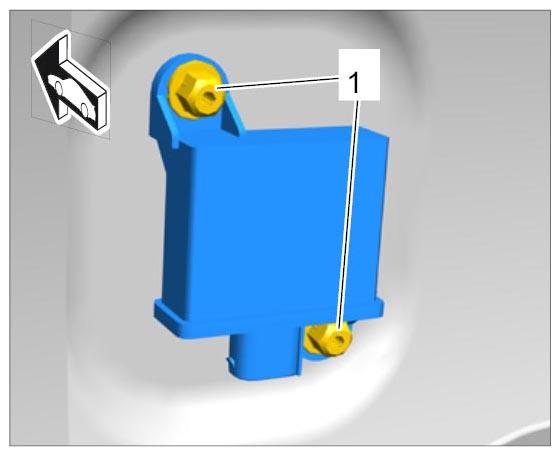

   Fig 2: Identifying Rear TPM Antenna Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
