Installing Seal For Sliding Roof

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seal.
  2. Centre the gap in the seal -arrow-  with the rear edge of the sliding roof.

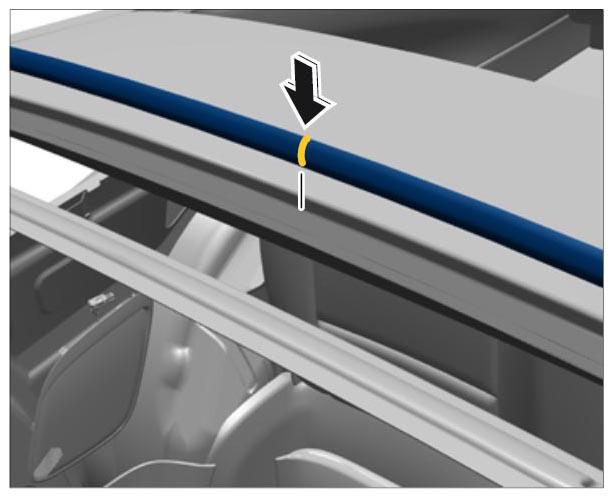

    Fig 1: Positioning Seal
    G09994350Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Pull off protective film from the adhesive tape in sections and at the same time press the seal onto the roof assembly with the help of another person.

  3. Lift up the seal close to the gap, pull off protective film at the left and right and press on the seal.
  4. Press the seal on without tension over its entire length in accordance with the contour of the sliding roof.
