Adjusting Sliding-Roof Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

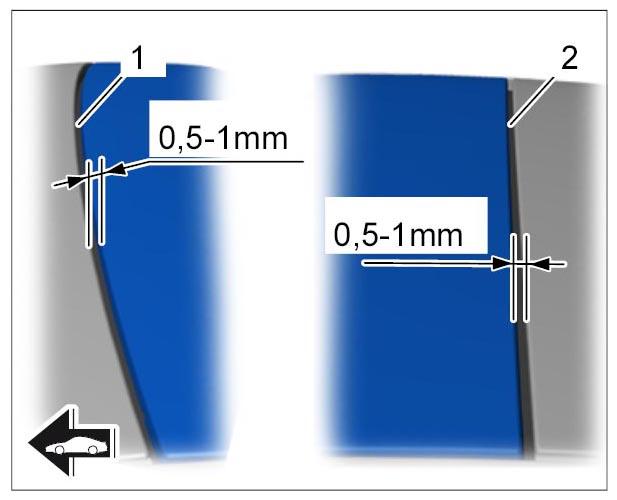

  1. Close the panel and adjust gaps at the front -1-  and rear -2-  .
    Fig 1: Adjusting Panel Gaps
    G09994343Courtesy of PORSCHE CARS NORTH AMERICA, INC.

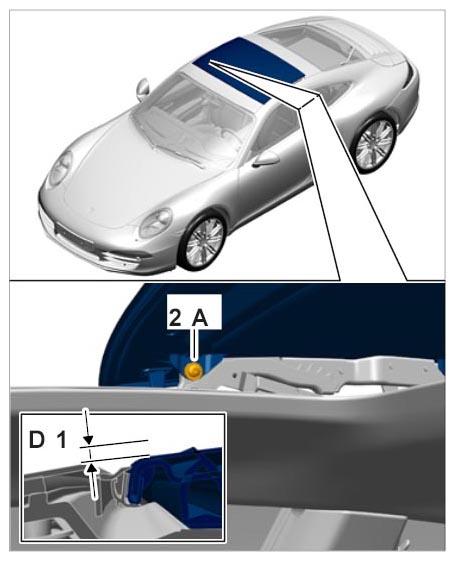

  2. Adjust the height -D1-  at the front sliding-roof panel by moving the panel.
    Fig 2: Adjusting Height Of Front Sliding-Roof Panel
    G09994344Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Tighten fastening screw -2A-  .

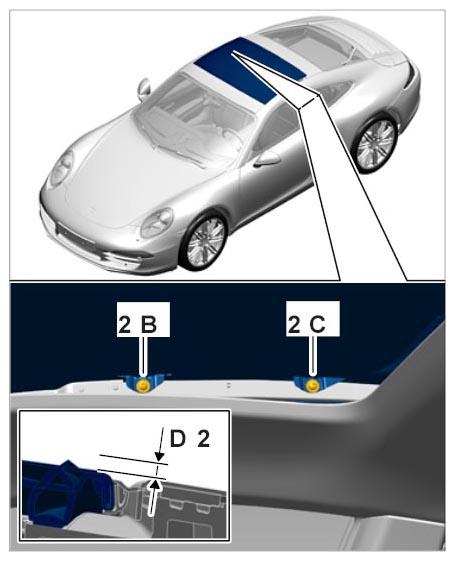

  4. Adjust the height -D2-  at the rear sliding-roof panel by moving the panel.
    Fig 3: Adjusting Height Of Rear Sliding-Roof Panel
    G09994345Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Tighten fastening screws -2B, 2C-  .
  6. Check gap dimensions and re-tighten fastening screws to the specified torque.
  7. Gap dimension - height at front (D1) Gap dimension 0 mm -0.5 mm  .
  8. Gap dimension - height at rear (D2) Gap dimension 0 mm +0.5 mm  .
  9. Front fastening screw Tightening torque 8 Nm (6 ft. lbs.)  .
  10. Rear fastening screw Tightening torque 5 Nm (3.5 ft. lbs.)  .
  11. Gap between sliding-roof panel and roof Gap dimension 0.5 mm -1 mm  .
