Removing Sunroof Motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

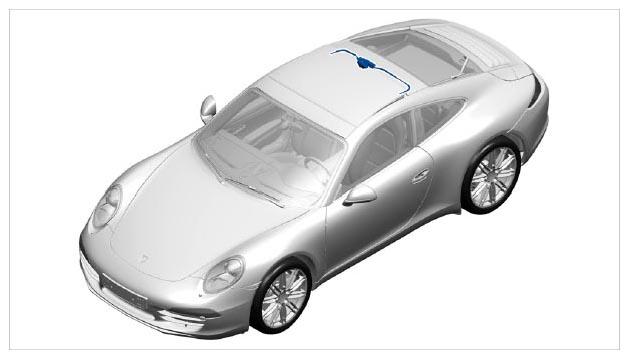

Fig 1: Identifying Sunroof Motor Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Close the mechanism before removing the electric drive.

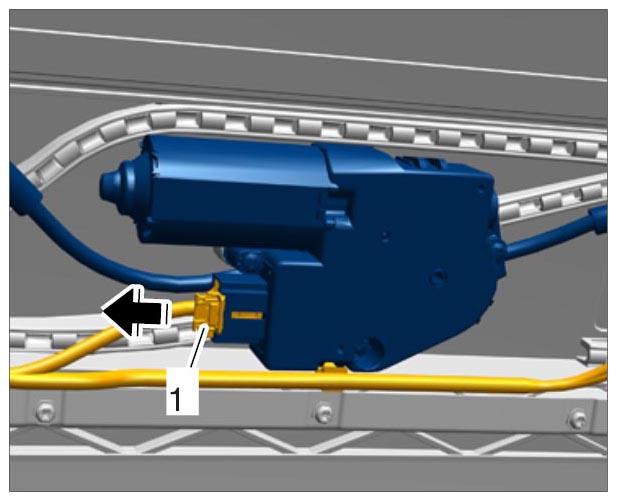

Release plug connection -1- for sunroof motor and pull it off.

Fig 2: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

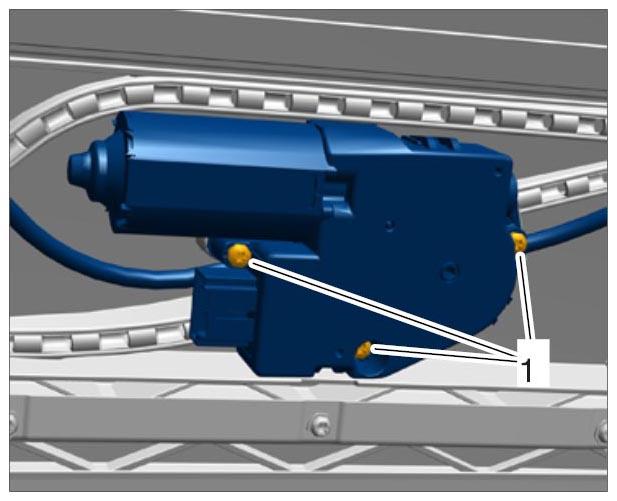

Unscrew and remove fastening screws -1- for sunroof motor.

Fig 3: Removing Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove sunroof motor in a downward direction.
