Technical Values - Roll-Over Protection System
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

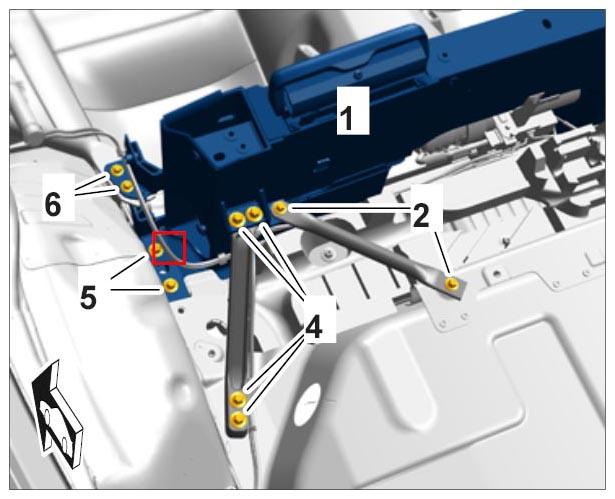

| Fastening screws securing roll-over protection system frame to bodyshell | Item 5 | Tightening torque | 46 Nm (34 ftlb.) | ||
|
Unscrewing fastening screws |
|||||
| Fastening screws securing roll-over protection system frame to front support | Item 6 | Tightening torque | 23 Nm (17 ftlb.) | ||
|
Unscrewing fastening screws |
|||||
| Fastening screws securing roll-over protection system frame to outer rear support | Item 4 | Tightening torque | 46 Nm (34 ftlb.) | ||
|
Unscrewing fastening screws |
|||||

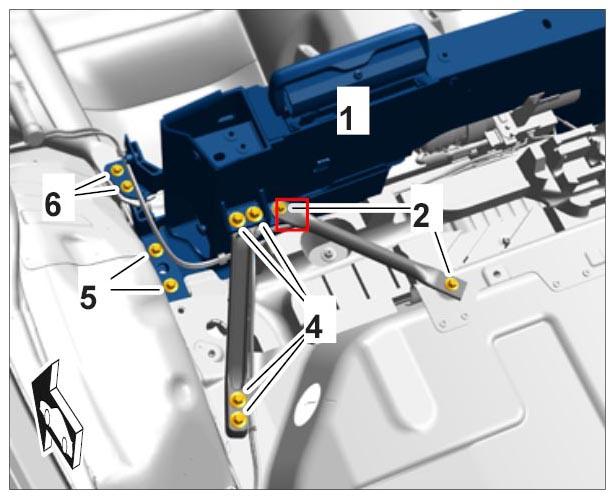

| Fastening screws securing roll-over protection system frame to inner rear support | Item 2 | Tightening torque | 23 Nm (17 ftlb.) | ||
|
Unscrewing fastening screws |
|||||
