Fitting Rear Logo

Information

• Carefully clean any dirt, grease, wax and other impurities off the installation area of the body using isopropanol.
• Always use a clean cloth.
• The room and object temperature must be at least → Nominal value: +15°C.
• Humidity should be → Nominal value: 50 %+/-10 %.
• Do not touch the bonding surface again after removing the protective paper.
• Wear clean gloves during the bonding process in order to guarantee adequate adhesion.
• The parts must have been bonded for at least → Nominal value: 72 h before washing the vehicle in a car wash.

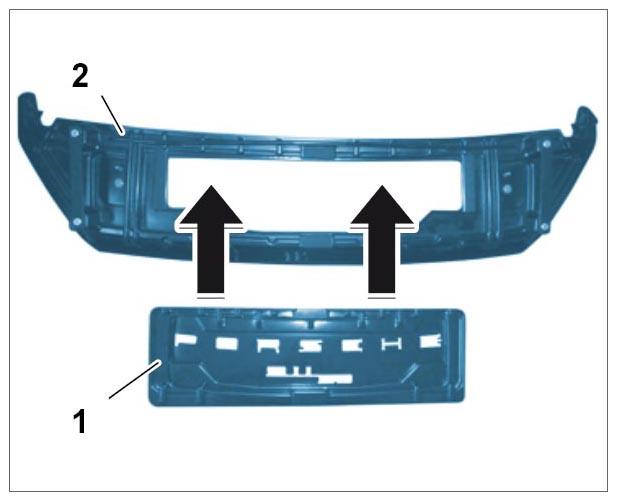

1. Insert the correct interchangeable insert -1-  into logo template 9867 -2-  .

   The following interchangeable inserts -1-  can be selected:

   Interchangeable insert - 991 Porsche 9867/1, Interchangeable insert - 991 Porsche 911 9867/2, Interchangeable insert - 991 Carrera/Carr. S 9867/3, Interchangeable insert - 991 Carrera 4/4S 9867/4, Interchangeable insert - 991 Turbo/TurboS 9867/5, Interchangeable insert - 991 50 Years 9867/9

   Fig 1: Preparing Logo Template

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

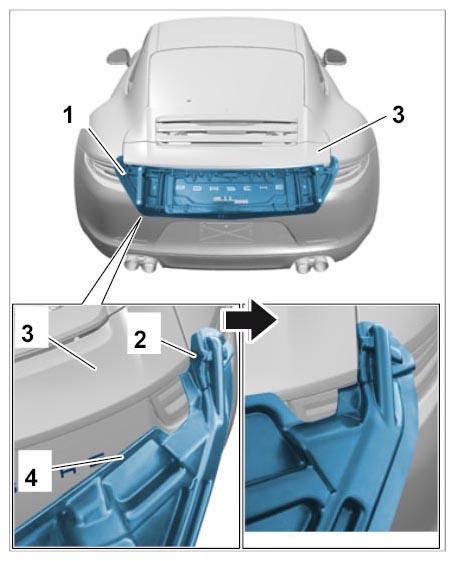

2. Position the logo template -1-  on the vehicle.
   1. 2.1. Guide in logo template -1-  in area -2-  between the rear spoiler -3-  and side panel.
   2. 2.2. Push logo template -1-  up as far as required until the edge -4-  is touching the rear spoiler -3-  .
      Fig 2: Positioning Logo Template

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

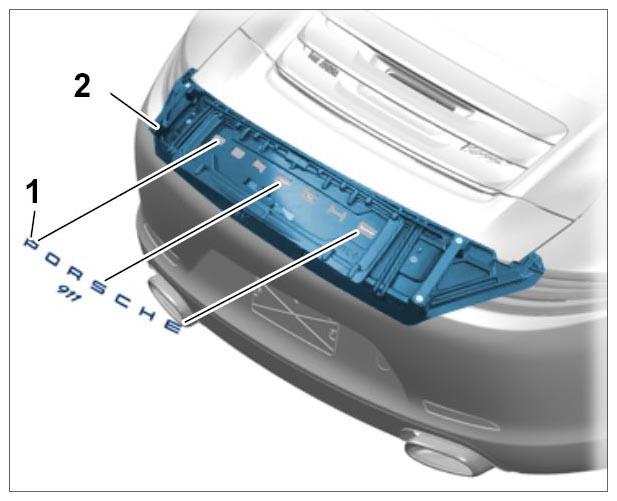

3. Remove protective paper from the logo -1-  .
4. Align the logo -1-  using the logo template -2-  and press it on firmly.
   Fig 3: Identifying Logo Template From Vehicle

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove logo template from the vehicle.
