Install The Spoiler Air Supply Module

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Air hoses are colour-coded and must not be interchanged.

Observe marking for insertion depth of hose connection.

Hoses must not be kinked.

Position air supply module -1- into the cut-outs -2- on the luggage compartment floor.
Feed air hoses -3- through the bore in the body.
Fit rubber sleeve -4- .
1. 3.1. Pull the rubber sleeve -4- by the tab -5- into the bore.
2. 3.2. The tab -5- of the rubber sleeve -4- must be aligned vertically upwards -arrow A- , otherwise is the danger that air hoses -3- are bent.

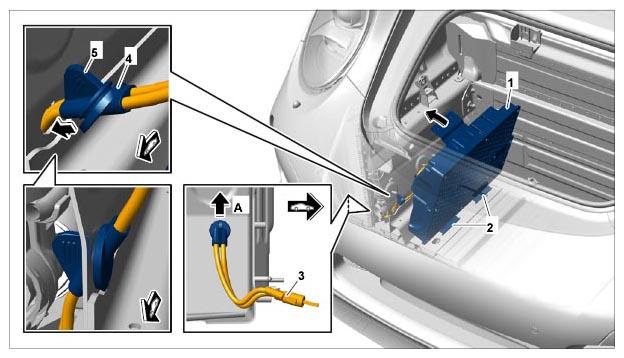

  Fig 1: Installing Air Supply Module
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Align the air hoses to the rubber sleeve using the markings.
Further installation is performed in reverse order to removal.
Check that the trim panel is fitted correctly.
