Removing Radiator Grille (At The Left And Right)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

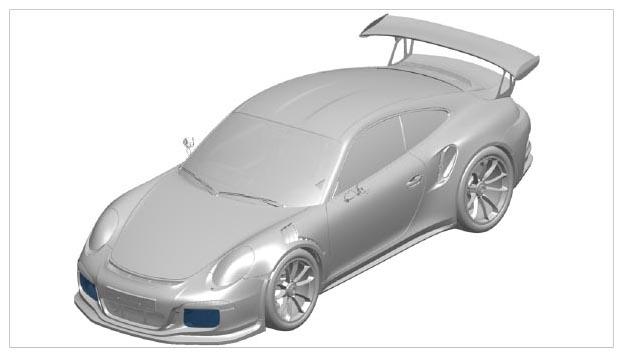

Fig 1: Identifying Front Air Grille Installation Position (Left And Right)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

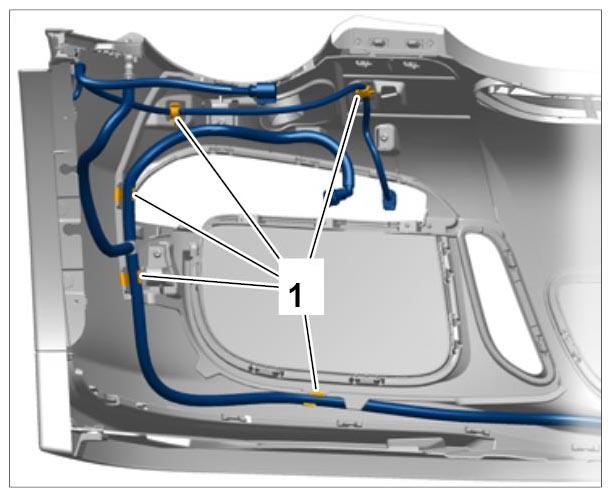

Loosen water hose from the mounting.

Fig 2: Identifying Water Hose Rivets Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

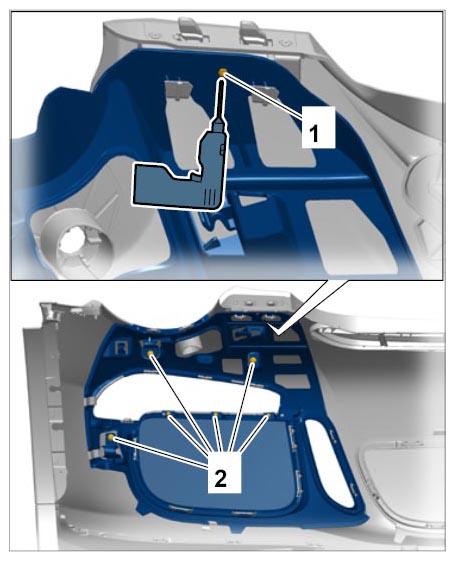

Drill out rivets -1- . → Diameter: 3.2 mm .

Fig 3: Drilling Out Rivets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -2- .

Fig 4: Removing Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release locking lugs all the way around -arrow- and remove them.

Fig 5: Identifying Locking Lugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove air grille.
